Rear Seat Belt Buckle Replacement

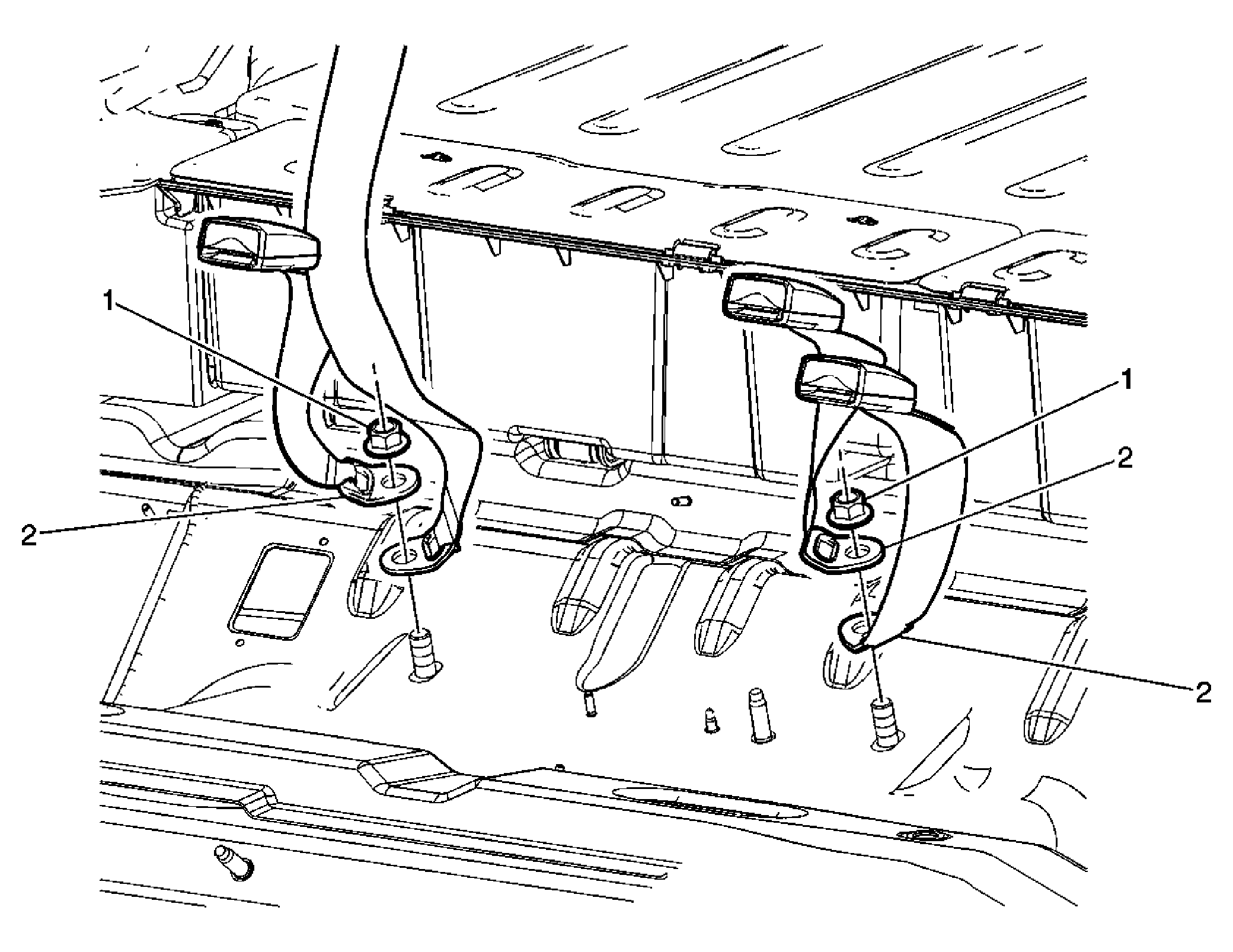

Fig 1: Identifying Rear Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle Nut CAUTION: Refer to Fastener Caution . Tip: Remove the nuts holding the forward edge of the rear seat cushion. Pivot the cushion up to gain access to the seat belt buckle nut. Tighten: 45 N.m (33 lb ft)
2	Seat Belt Buckle Assembly
