Driver or Passenger Seat Belt Buckle Replacement

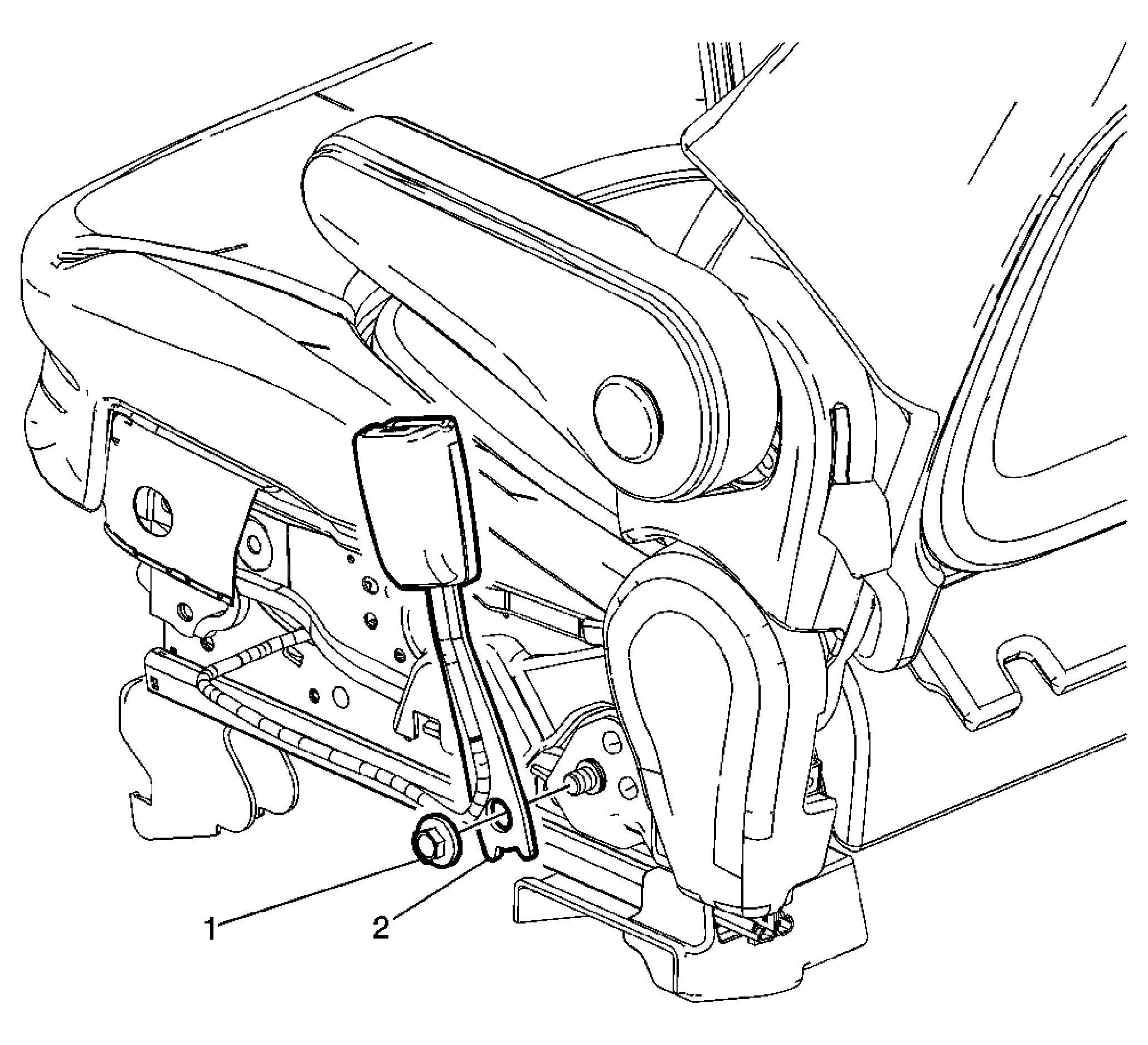

Fig 1: Identifying Front Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Seat Belt Buckle Nut CAUTION: Refer to Fastener Caution . Tip:  Disconnect the electrical connector. Tighten:  40 N.m (30 lb ft)
2	Seat Buckle Assembly Belt
