Body Hinge Pillar Trim Panel Replacement - Left Side

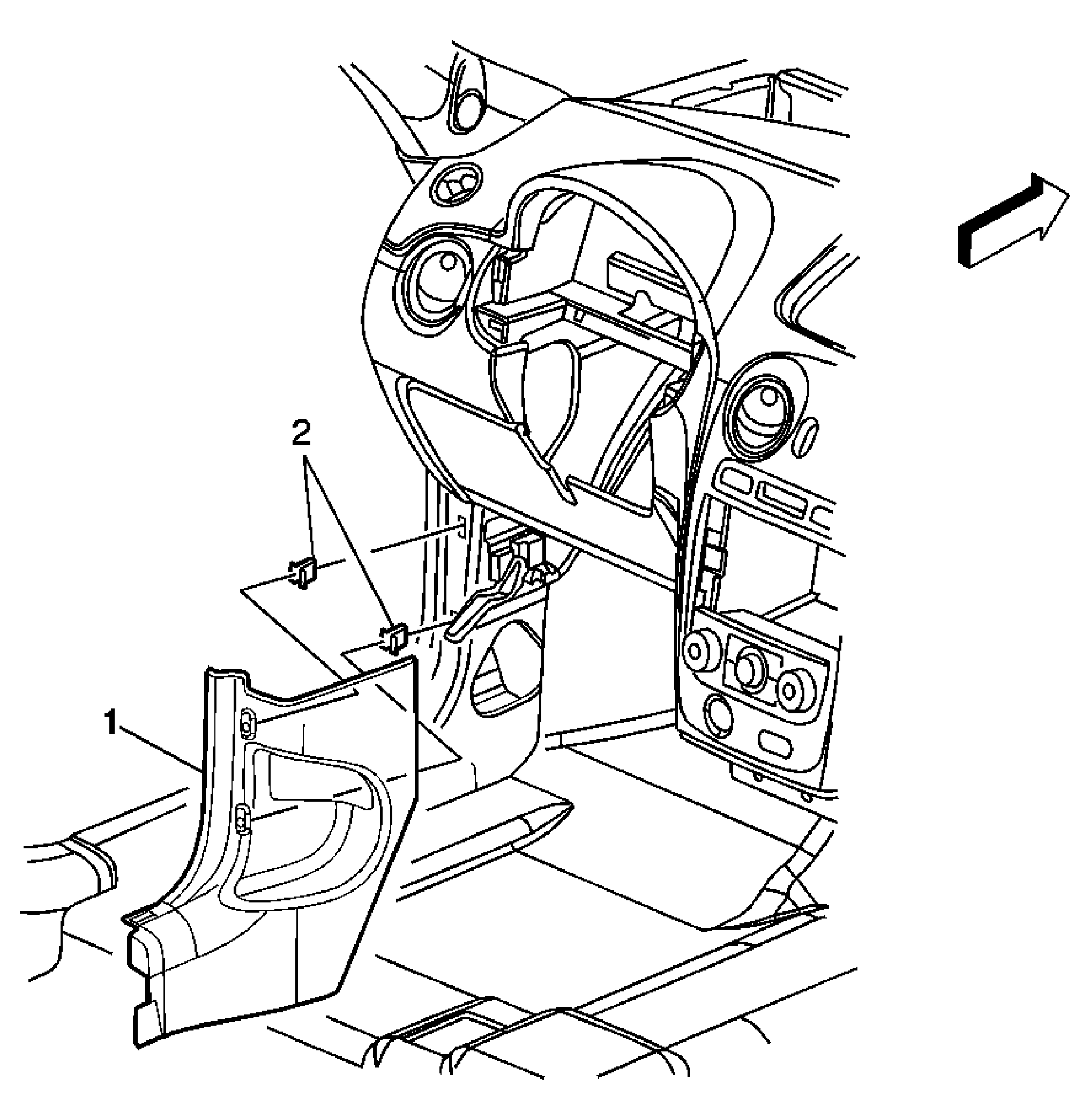

Fig 1: View Of Body Hinge Pillar Trim Panel - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedures:  Remove the front door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
1	Panel, Hinge Pillar Trim Tip:  Pull rearward to disengage the retaining clips and slide out past the hood latch release handle.
2	Clip, Panel Hinge Pillar Trim (Qty: 2)
