CAUTION:
Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.
Preliminary Procedure
- Remove the front seat. Refer to Front Seat Replacement - Bucket .
- Remove the seat riser outboard finish cover. Refer to Front Seat Cushion Outer Trim Panel Replacement (Power) or Front Seat Cushion Outer Trim Panel Replacement (Manual) .
- Remove the seat recliner inboard finish covers. Refer to Front Seat Back Recliner Inner Trim Panel Replacement .
- Remove the seat recliner outboard finish covers. Refer to Front Seat Back Recliner Outer Trim Panel Replacement .
- Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup
.
|

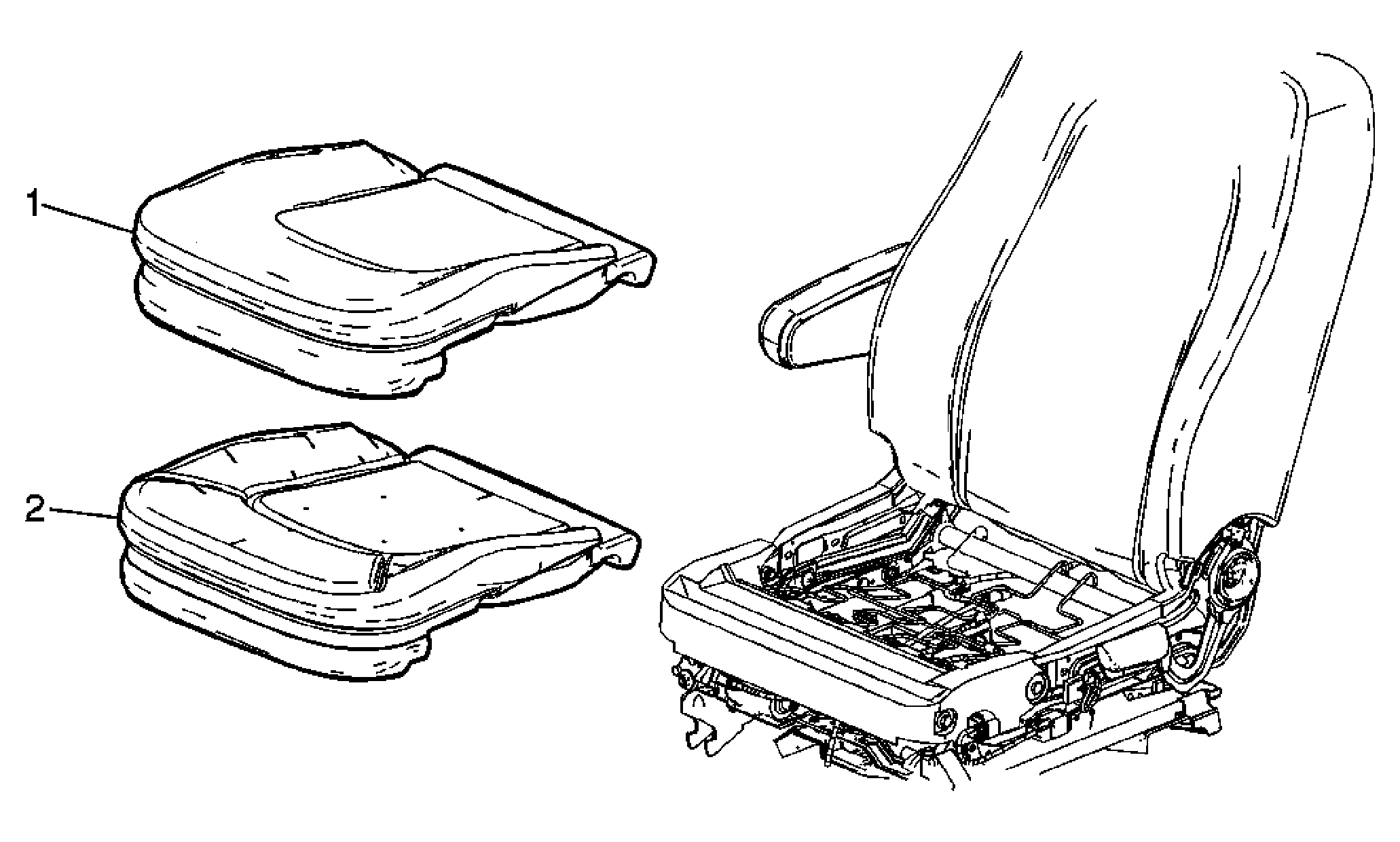

| 1 |
Cover, Seat Cushion
Tip:
- Tilt the seat back forward.
- Disconnect the seat cushion cover J-channel from the seat cushion frame.
- Disconnect the electrical connector if working on the passenger seat.
- Remove the push in retainers from the side of the seat cover that attach to the seat frame
- Remove the hog rings from the seat cushion cover to seat frame.
|
| 2 |
Pad, Seat Cushion
Tip:
The passenger presence system is part of the pad on the passenger seat cushion, and must be replaced as an assembly. |
