Front Seat Back Recliner Inner Trim Panel Replacement

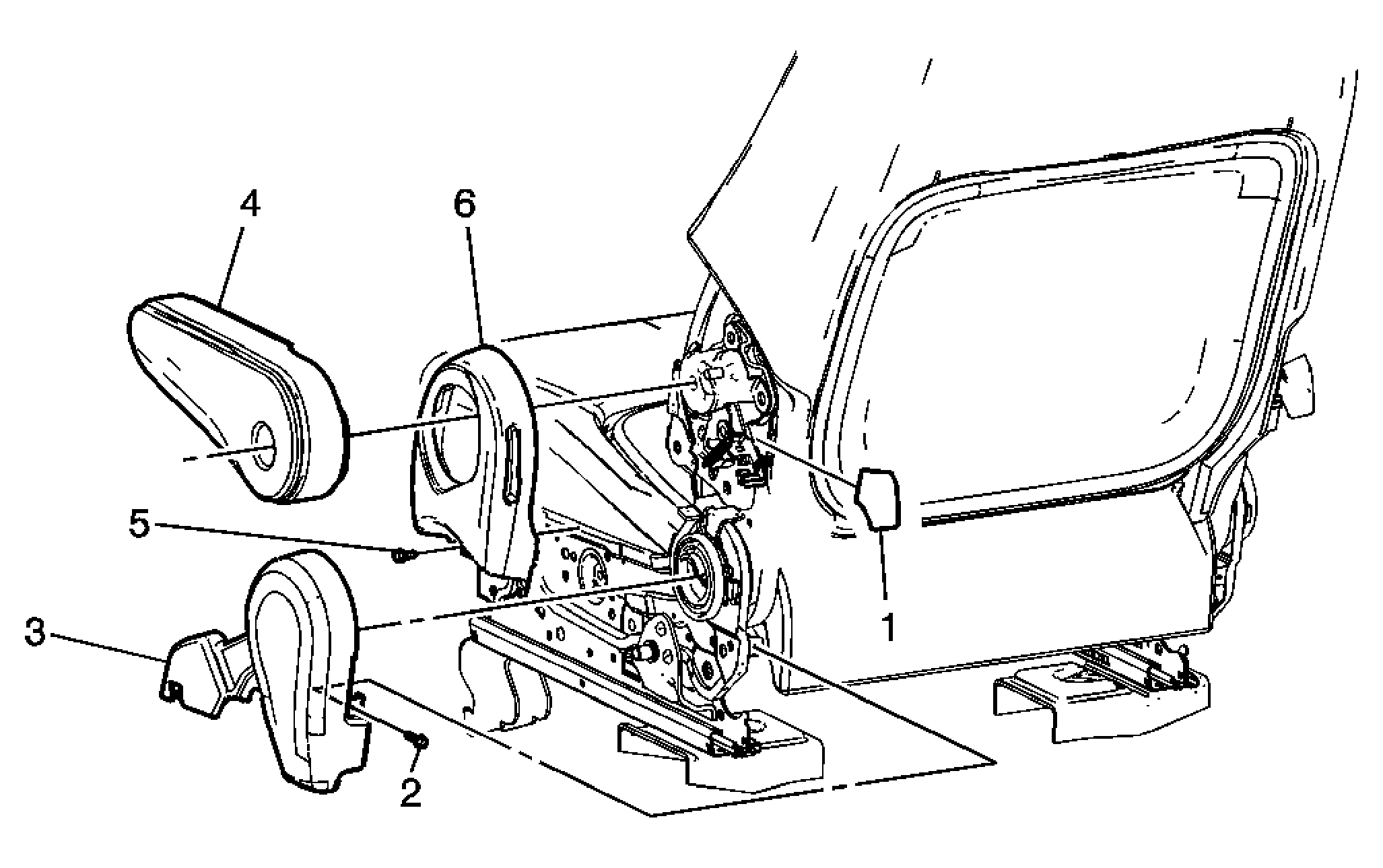

Fig 1: Front Seat Back Recliner Inner Trim Panel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Handle, Seat Back Cushion Latch Release
2	Screw, Seat Recliner Finish Cover NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Cover, Seat Recliner Finish Inboard Bottom Tip: Unclip the rear of the cover first then pull away from the front side of the seat to remove.
4	Armrest, Seat Refer to Front Seat Armrest Replacement .
5	Screw, Seat Recliner Finish Cover Tighten: 2 N.m (18 lb in)
6	Cover, Seat Recliner Finish Inboard Top Tip: Unclip the rear of the cover first then pull away from the front side of the seat to remove.
