Front Seat Replacement - Bucket

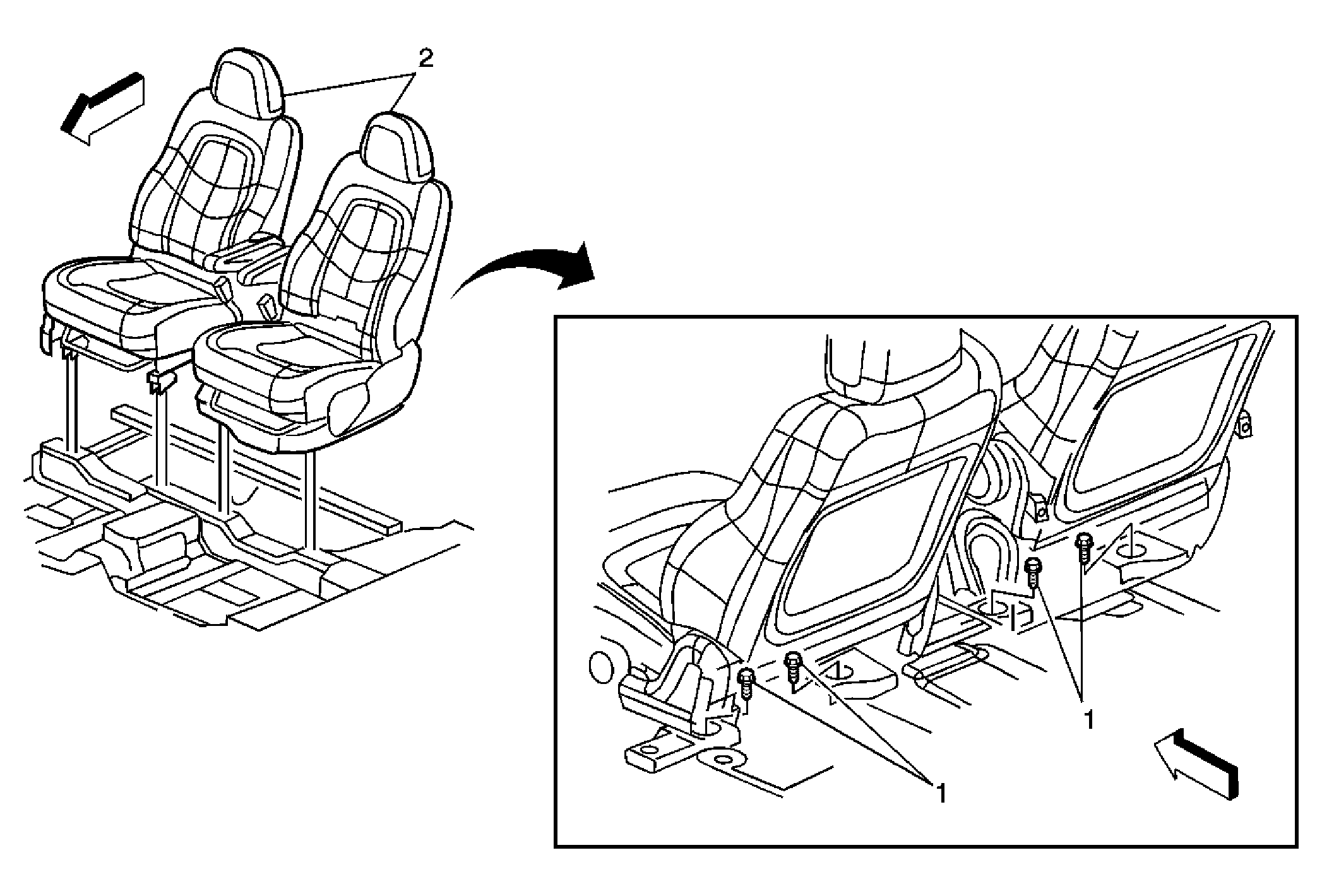

Fig 1: Front Seat Replacement - Bucket
GM1592809Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Bolt (Qty: 2)
NOTE: Refer to Fastener Notice .

Tip:  Adjust the seat forward or rearward to access the bolts, and then move the seat to a central position for ease of removal through the door opening.

Tighten:  45 N.m (33 lb ft)
2 Seat Assembly
Tip:  Tip the seat forward to disconnect the electrical connectors and release the front seat mounts from the slots.
