Front Seat Back Recliner Outer Trim Panel Replacement

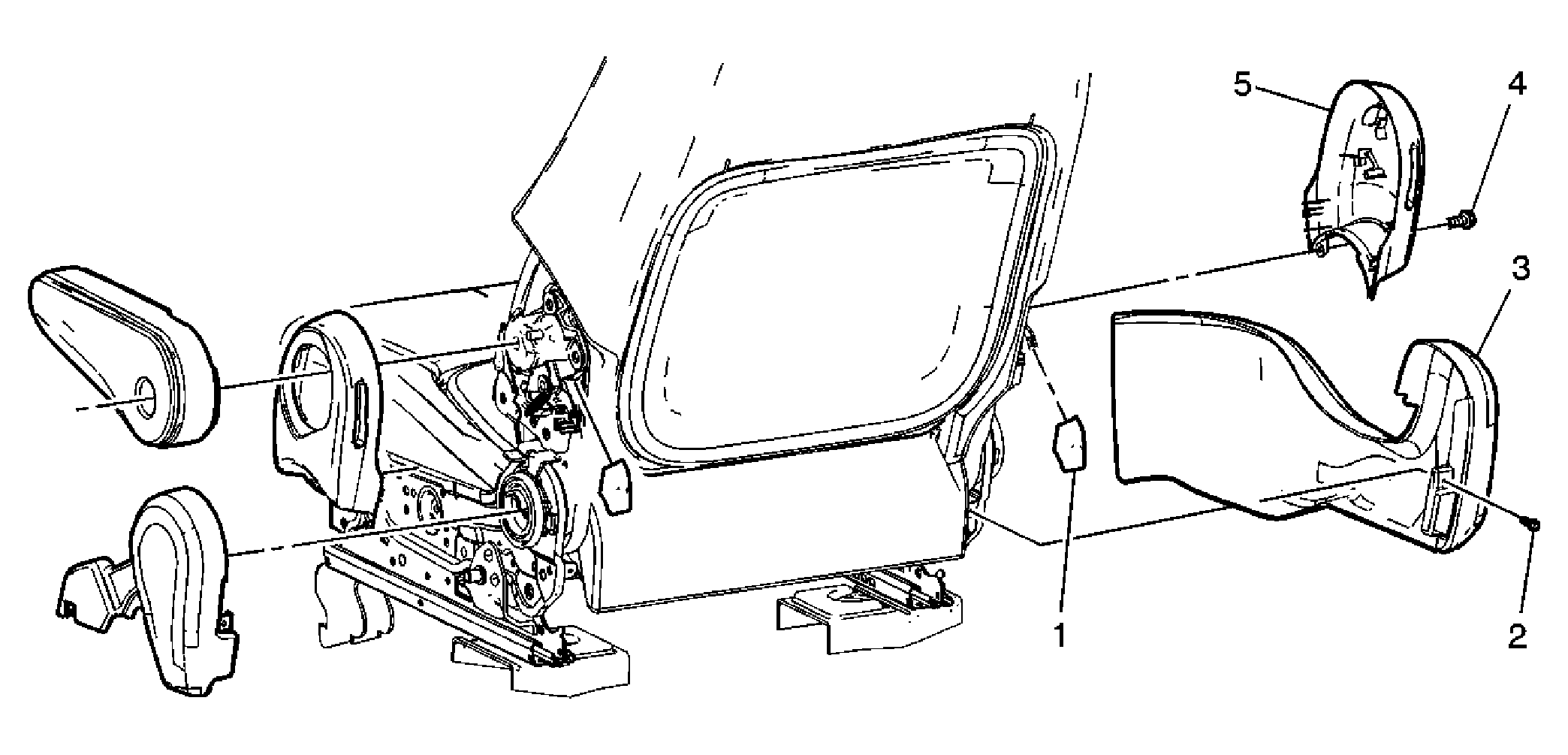

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the recliner handle. Refer to Driver Seat and Passenger Seat Recliner Handle Replacement . |
|
| 1 | Handle, Seat Back Cushion Latch Release |
| 2 | Screw, Seat Recliner Finish Cover
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Cover, Seat Recliner Finish Outboard Bottom Tip: Unclip the rear of the cover first then pull away from the front side of the seat to remove. |
| 4 | Screw, Seat Recliner Finish Cover Tighten: 2 N.m (18 lb in) |
| 5 | Cover, Seat Recliner Finish Outboard Top Tip: Unclip the rear of the cover first then pull away from the front side of the seat to remove. |
