Seat Belt Retractor Pretensioner Replacement - Front (Monte Carlo)

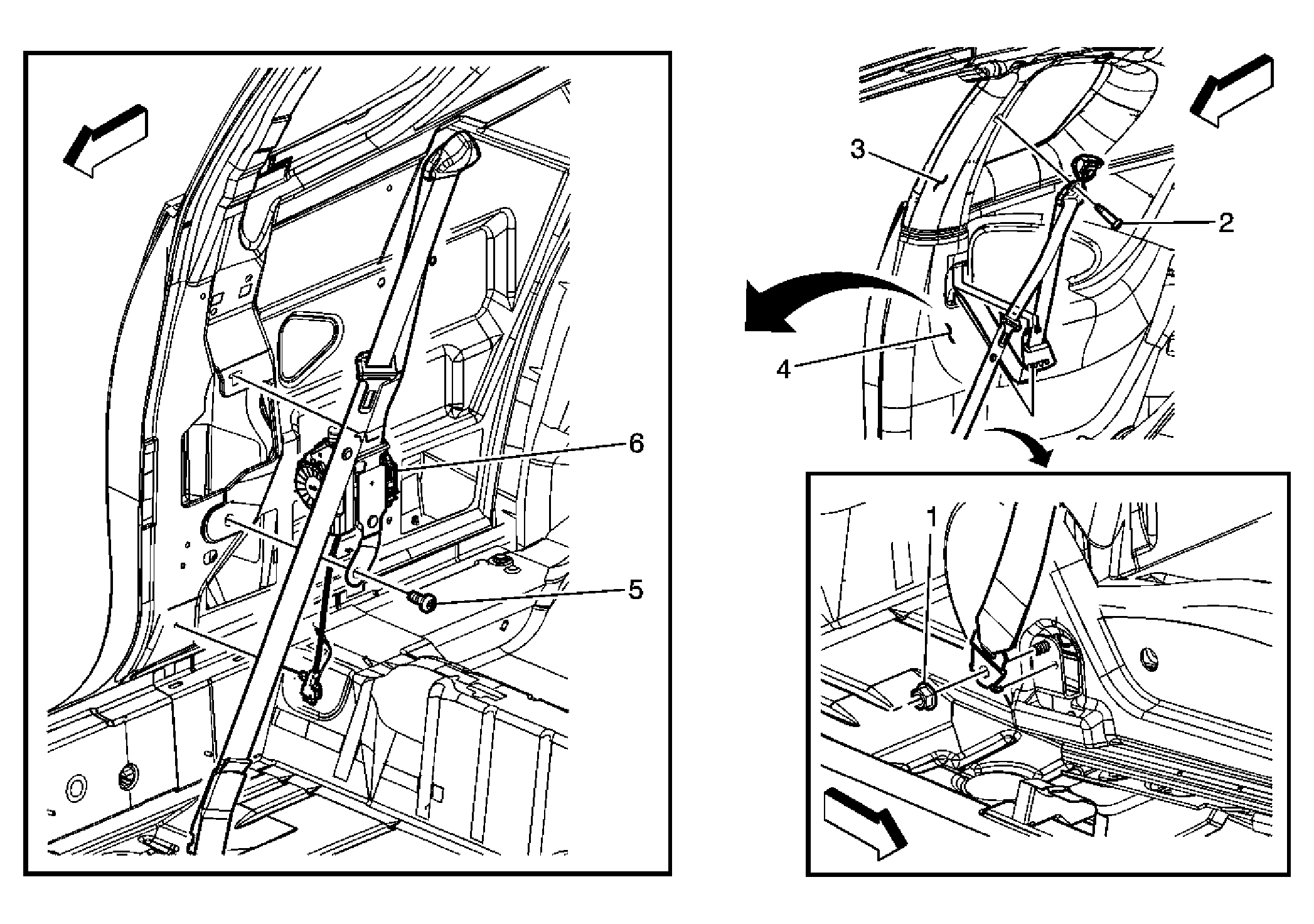

Fig 1: Exploded View Of Seat Belt Retractor Pretensioner - Front (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Move the front seat to the forward most position.
1	Seat Belt Retractor Anchor Plate Bolt Tighten: 47 N.m (35 lb ft)
2	Seat Shoulder Belt Guide Bolt Tighten: 47 N.m (35 lb ft)
3	Rear Quarter Upper Trim Panel Assembly Refer to Rear Quarter Upper Trim Panel Replacement (Impala) or Rear Quarter Upper Trim Panel Replacement (Monte Carlo) .
4	Rear Quarter Lower Trim Panel Assembly Refer to Rear Quarter Lower Trim Panel Replacement (Impala) or Rear Quarter Lower Trim Panel Replacement (Monte Carlo) .
5	Seat Shoulder Belt Retractor Bolt Tighten: 47 N.m (35 lb ft)
6	Retractor Belt Assembly Tip: Disconnect the electrical connector.
