Rear Quarter Lower Trim Panel Replacement (Impala)

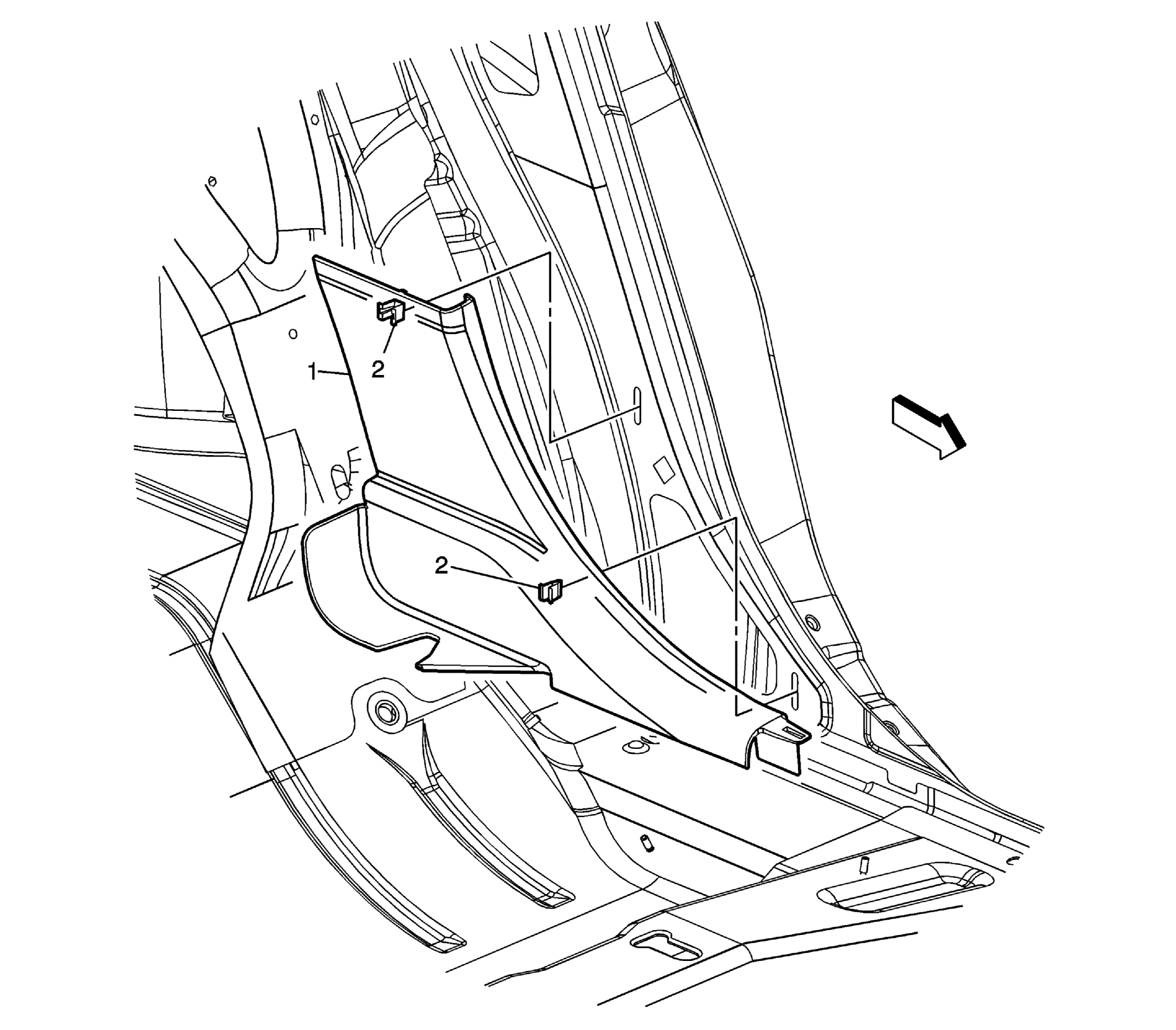

Fig 1: Identifying Rear Quarter Lower Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the lower center pillar trim. Refer to Center Pillar Lower Trim Panel Replacement .
1	Quarter Lower Trim Finish Panel Assembly
2	Quarter Lower Trim Finish Panel Retainer Clip (Qty: 2)
