Removal Procedure
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
- Front Bumper Fascia - Remove - Front Bumper Fascia Removal and Installation
- Drain the cooling system. Cooling System Draining and Filling (LGX Static Fill)Cooling System Draining and Filling (LGX GE 47716)Cooling System Draining and Filling (LSY Static Fill)Cooling System Draining and Filling (LSY GE 47716)

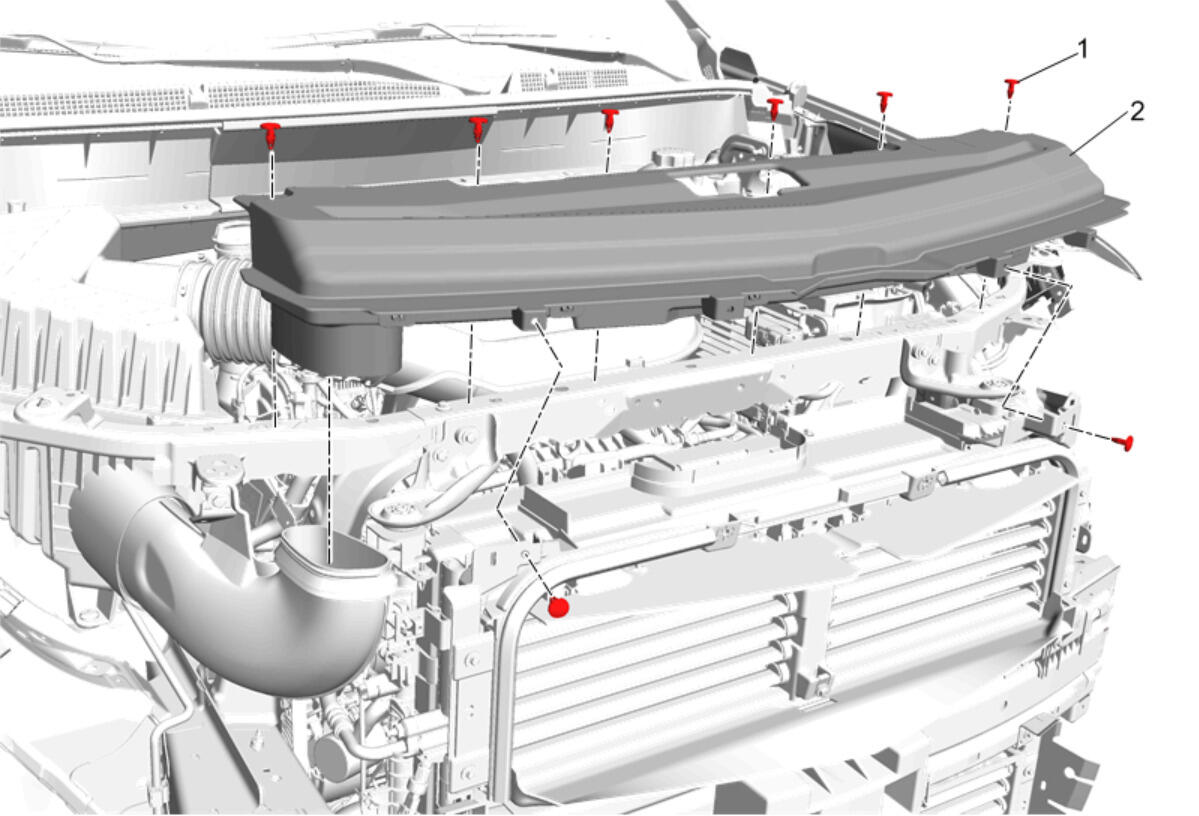

- Intake Air Splash Shield (2) - Remove - Intake Air Splash Shield Replacement
- Forward Lamp Wiring Harness - Reposition

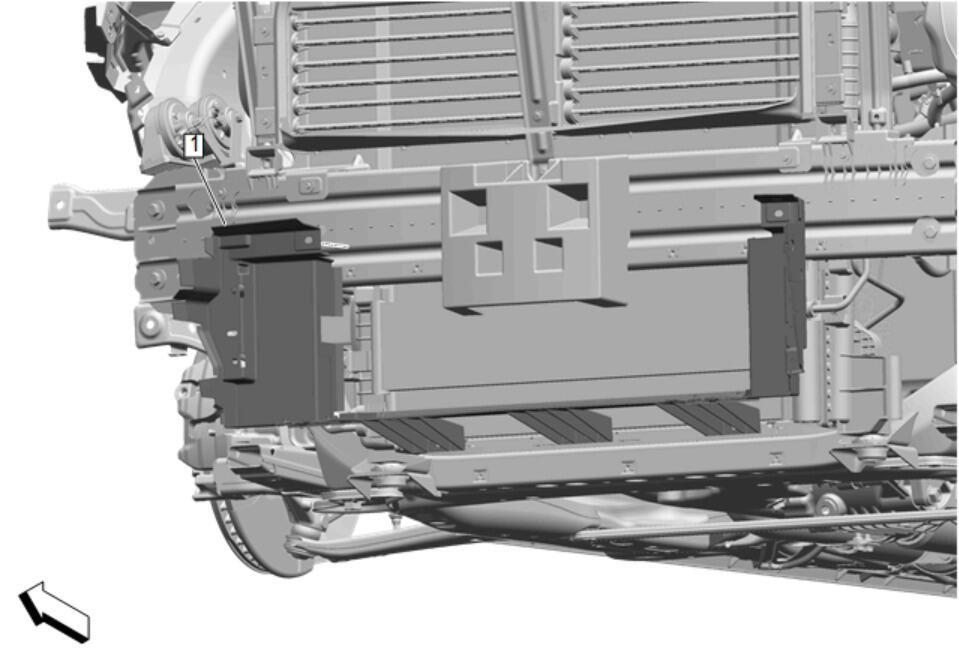

- Radiator Air Front Lower Baffle (1) - Remove - Radiator Air Front Lower Baffle Replacement
- Front Bumper Shutter - Remove - Front Bumper Shutter Replacement
- Radiator Air Side Upper Baffle- Left Side (1) - Remove - Radiator Air Side Upper Baffle Replacement - Left Side (LGX)Radiator Air Side Upper Baffle Replacement - Left Side (LSY)
- Radiator Air Side Upper Baffle- Right Side (1) - Remove - Radiator Air Side Upper Baffle Replacement - Right Side (LGX)Radiator Air Side Upper Baffle Replacement - Right Side (LSY)
- Radiator Outlet Hose @ Radiator - Remove - Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Engine Oil Cooler with V08)Radiator Outlet Hose Replacement (LSY Radiator to Water Pump)Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Radiator with V08)Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Water Pump Inlet Pipe with V08)Radiator Outlet Hose Replacement (LGX without V08)

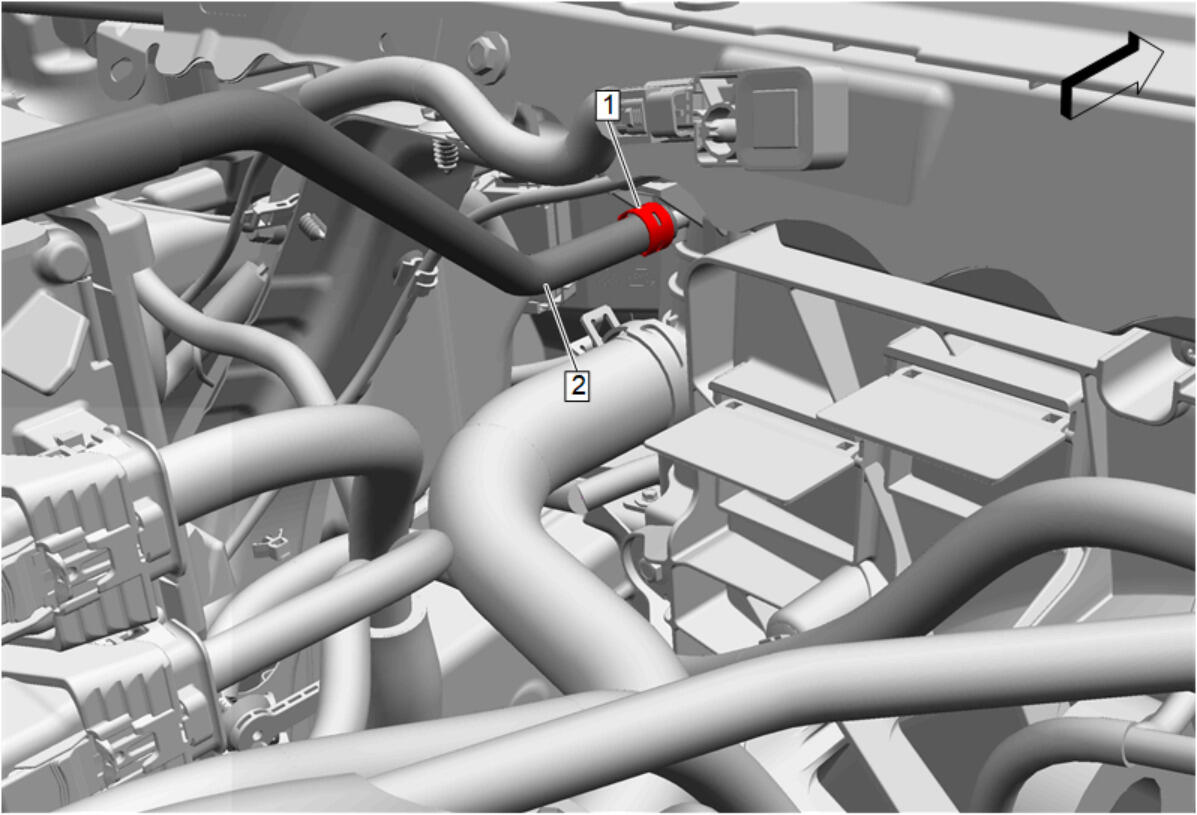

- Engine Coolant Air Bleed Hose (2) @ Radiator - Remove - Engine Coolant Air Bleed Hose Replacement (Water Pump to Water Pump Inlet Pipe)Engine Coolant Air Bleed Hose Replacement (Engine Coolant Flow Control Valve to Engine Coolant thermostat Housing Pipe)Engine Coolant Air Bleed Hose Replacement (LSY Radiator to Radiator Surge Tank to Engine Coolant Thermostat Housing Pipe)
- Radiator Inlet Hose - Remove - Radiator Inlet Hose Replacement (LGX)Radiator Inlet Hose Replacement (LSY)

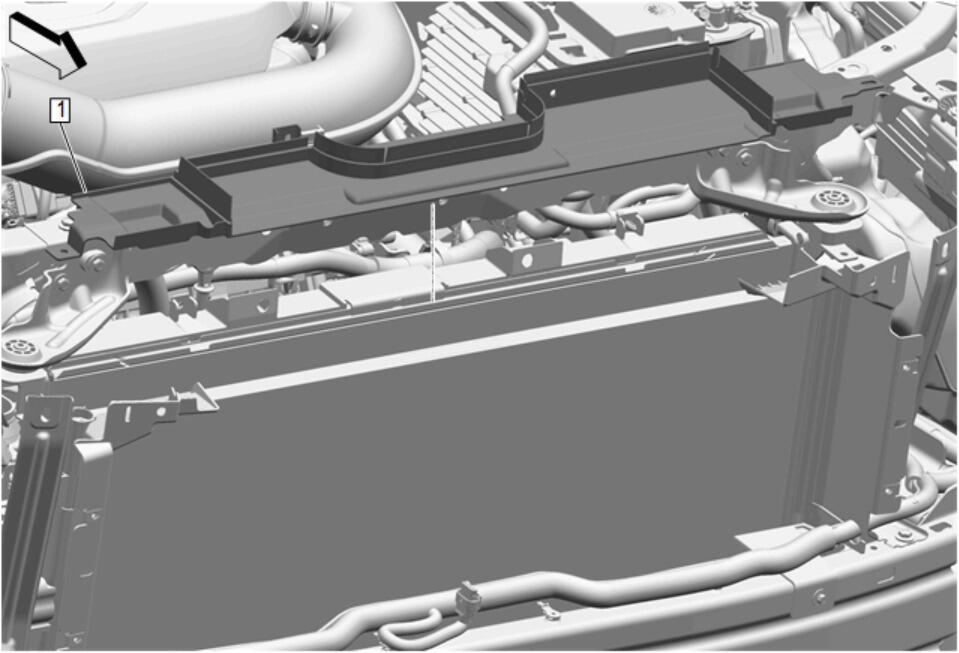

- Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LGX)Radiator Air Upper Baffle Replacement (LSY)
- Air Conditioning Condenser - Remove - Air Conditioning Condenser Replacement (With V08)Air Conditioning Condenser Replacement (Without V08)
- Charge Air Cooler - Remove - Charge Air Cooler Replacement
- Wiring Harness @ Engine Control Module - Reposition

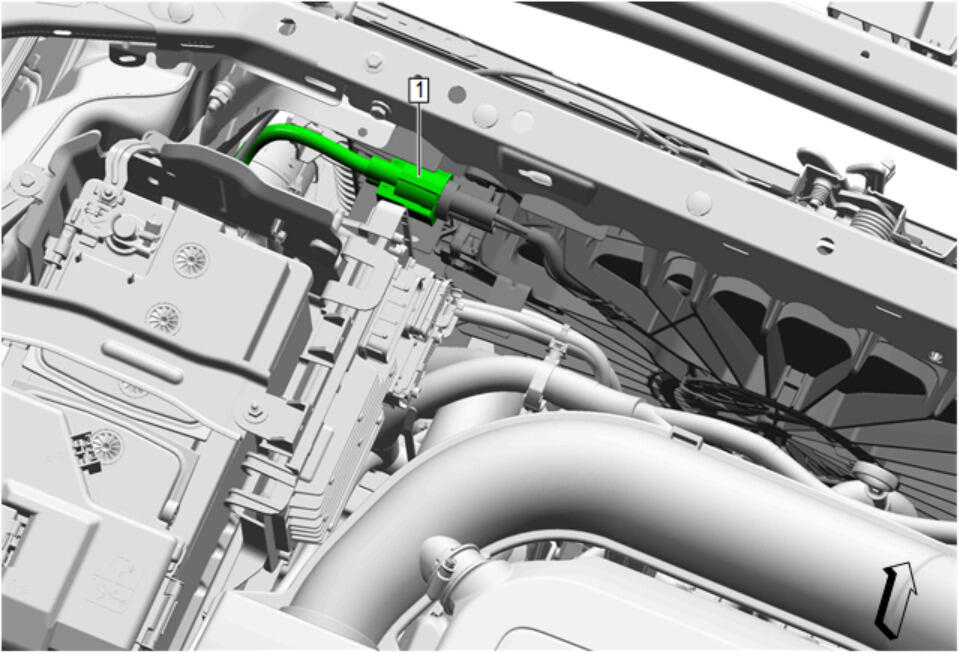

- Electrical Connector (1) @ Engine Coolant Fan - Disconnect
- Wiring Harness @ Engine Coolant Fan - Disconnect

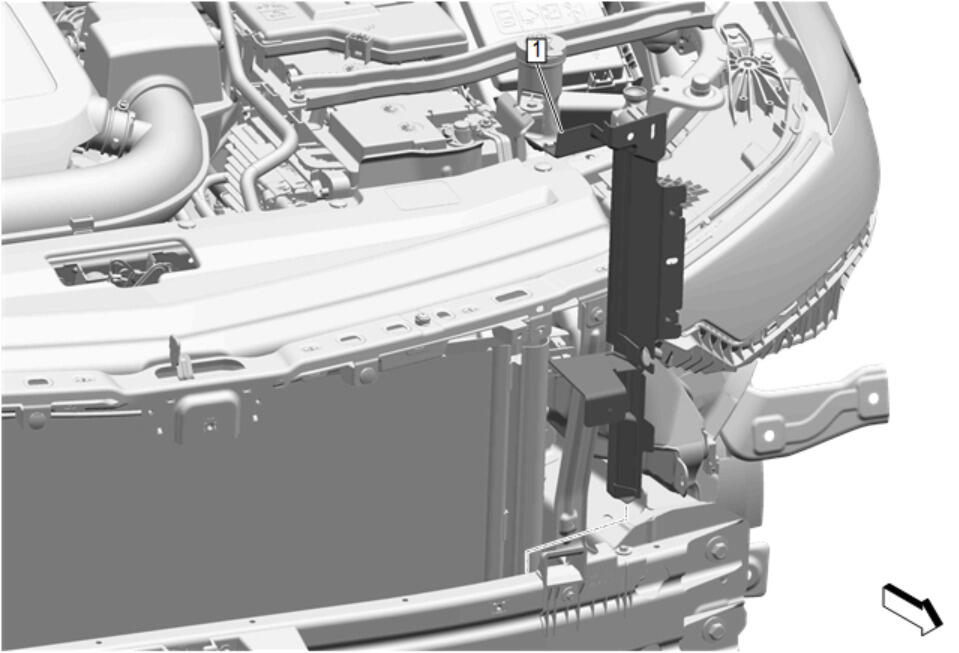

- Radiator Upper Bracket- Left Side - Remove - Radiator Upper Bracket Replacement - Left Side (LGX)Radiator Upper Bracket Replacement - Left Side (LSY)

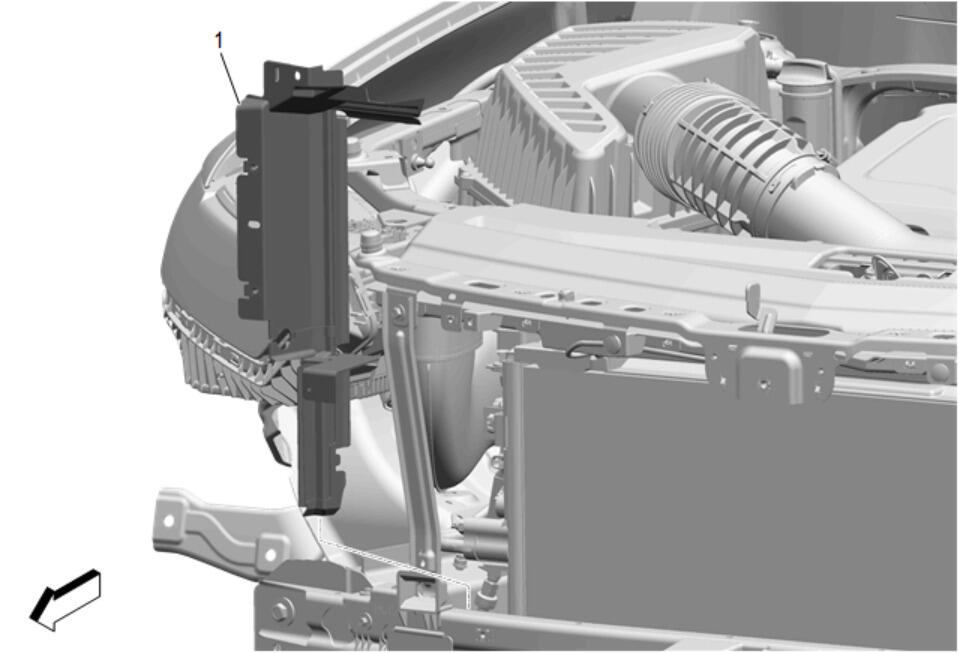

- Radiator Upper Bracket- Right Side - Remove - Radiator Upper Bracket Replacement - Right Side (LGX)Radiator Upper Bracket Replacement - Right Side (LSY)

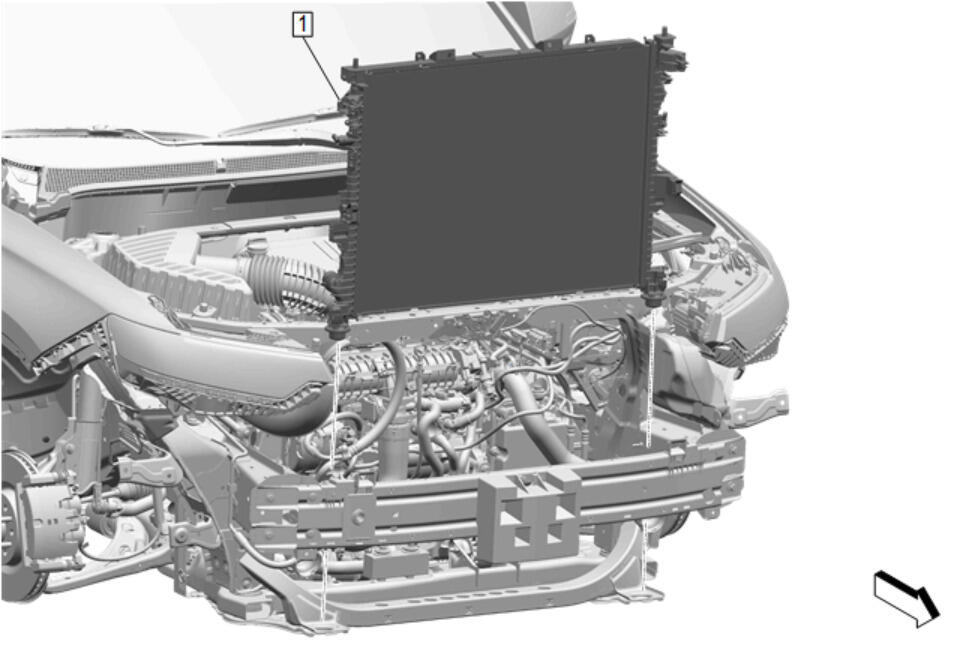

- Engine Coolant Fan Module Radiator (1) - Remove
- Remove the control valve body cover (1) from the transmission. Control Valve Body Cover Replacement
- Remove the control valve body (1) from the transmission. Control Valve Body Assembly Removal
