Radiator Upper Bracket Replacement - Left Side (LSY)
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

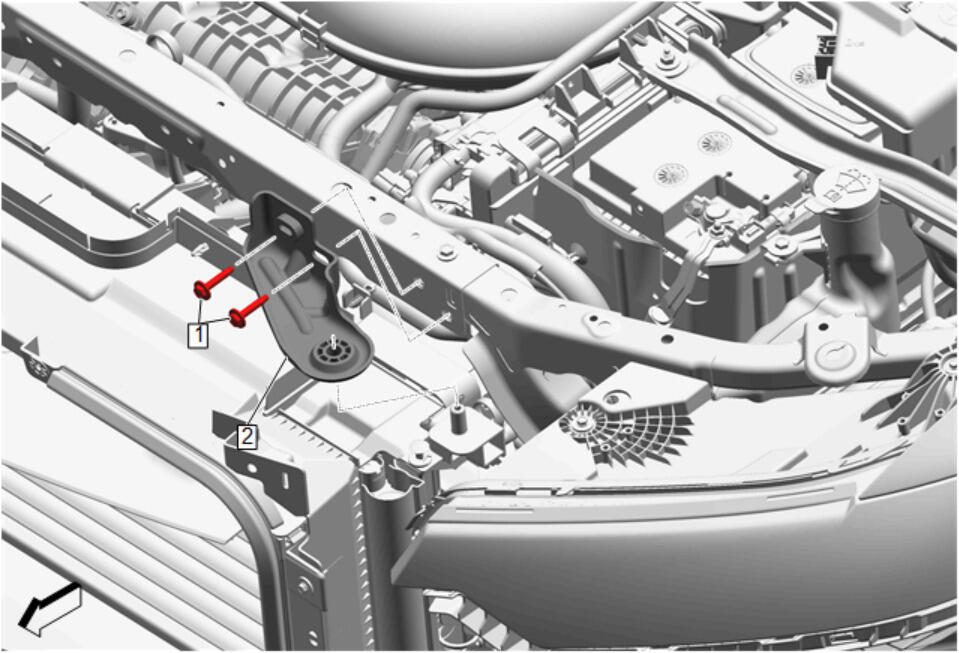

| Callout | Component Name |
|---|---|
|
Preliminary Procedures |
|
| 1 | Radiator Upper Bracket Bolt [ 2x ]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radiator Upper Bracket - Left Side |
