Engine Coolant Air Bleed Hose Replacement (Engine Coolant Flow Control Valve to Engine Coolant thermostat Housing Pipe)

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

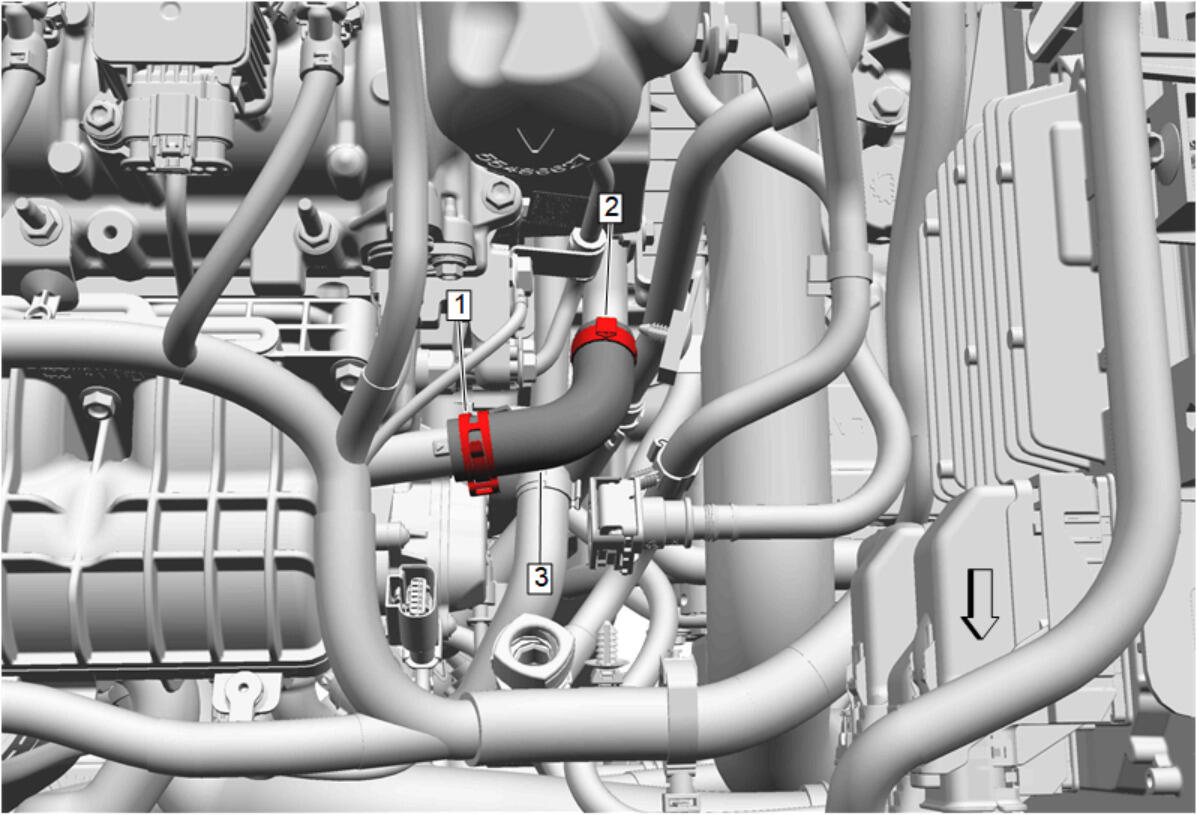

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (LGX Static Fill) Cooling System Draining and Filling (LGX GE 47716) Cooling System Draining and Filling (LSY Static Fill) Cooling System Draining and Filling (LSY GE 47716) Evaporative Emission Canister Purge Pump Replacement
1	Engine Oil Cooler Inlet Hose Clamp Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Engine Coolant Air Bleed Hose Clamp Procedure Install NEW
3	Engine Coolant Air Bleed Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (LGX Static Fill) Cooling System Draining and Filling (LGX GE 47716) Cooling System Draining and Filling (LSY Static Fill) Cooling System Draining and Filling (LSY GE 47716) Start the engine and check for coolant leaks.
