Engine Coolant Air Bleed Hose Replacement (Water Pump to Water Pump Inlet Pipe)
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

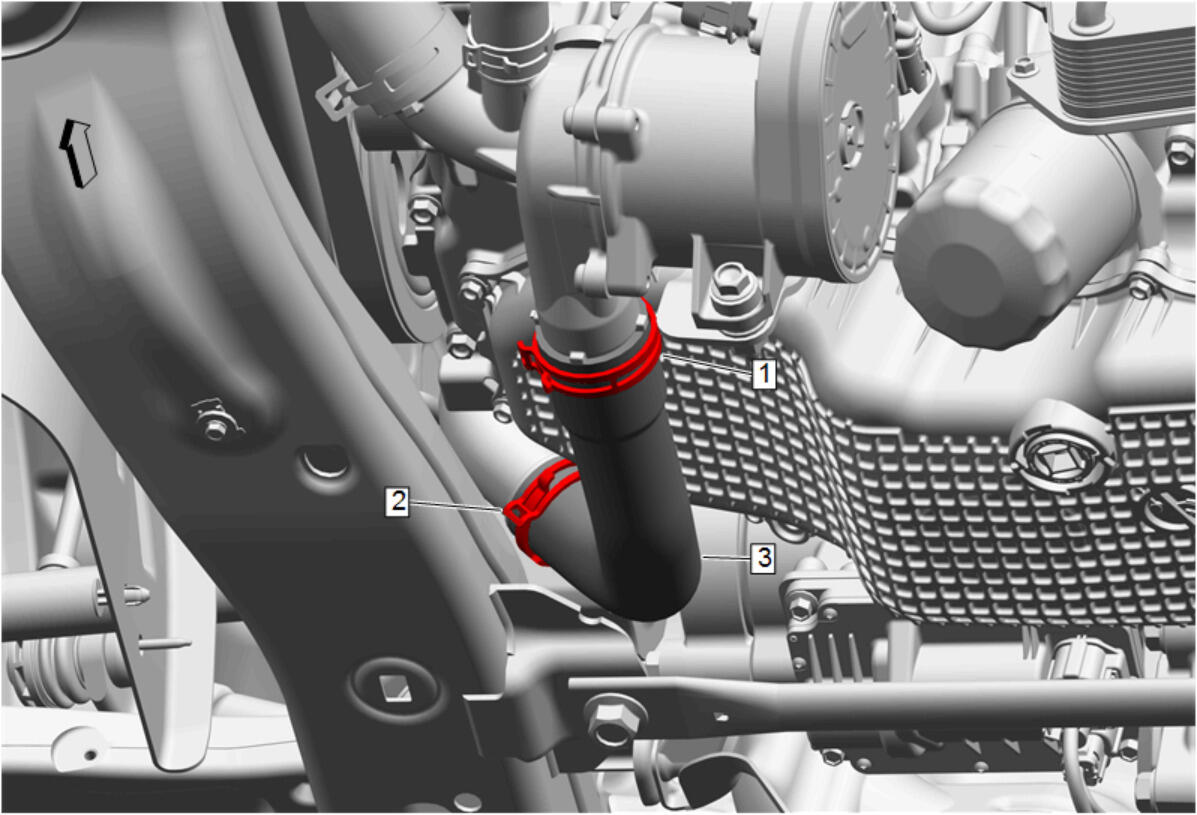

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (LGX Static Fill) Cooling System Draining and Filling (LGX GE 47716) Cooling System Draining and Filling (LSY Static Fill) Cooling System Draining and Filling (LSY GE 47716) |
|
| 1 | Radiator Outlet Hose Clamp Procedure Hose Clamp Replacement Guidelines - Spring Type |
| 2 | Radiator Outlet Hose Clamp Procedure Hose Clamp Replacement Guidelines - Spring Type |
| 3 | Engine Coolant Air Bleed Hose Procedure
|
