Charge Air Cooler Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

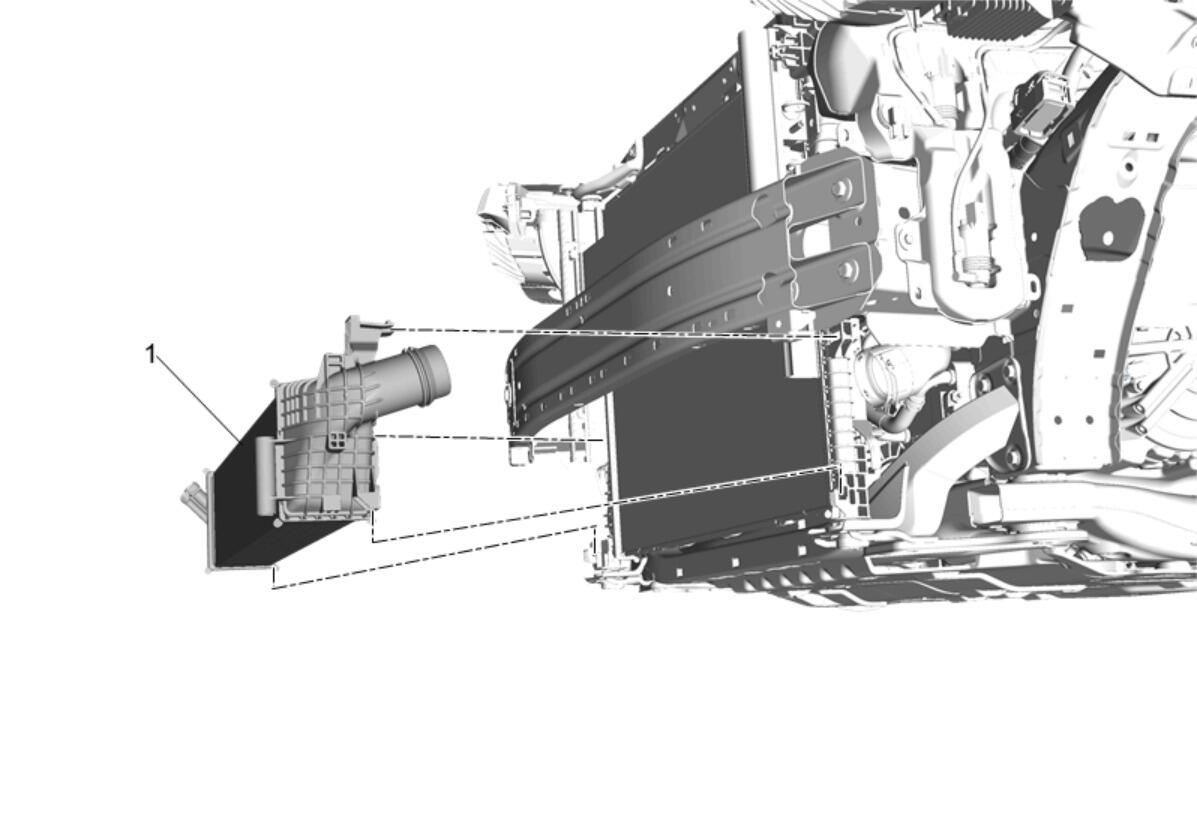

GM5219418Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Conditioning Condenser Replacement (With V08)Air Conditioning Condenser Replacement (Without V08)
  2. Charge Air Cooler Inlet Air Tube @ Charge Air Cooler - Disconnect - Charge Air Cooler Inlet Air Tube Replacement
  3. Charge Air Cooler Outlet Air Hose @ Charge Air Cooler - Disconnect - Charge Air Cooler Outlet Air Hose Replacement
1 Charge Air Cooler

Procedure

  1. Disconnect the electrical connector.
  2. Release retainers and remove charge air cooler from radiator.
  3. Transfer components as necessary.
