Windshield Washer Solvent Container Replacement (With LTA)

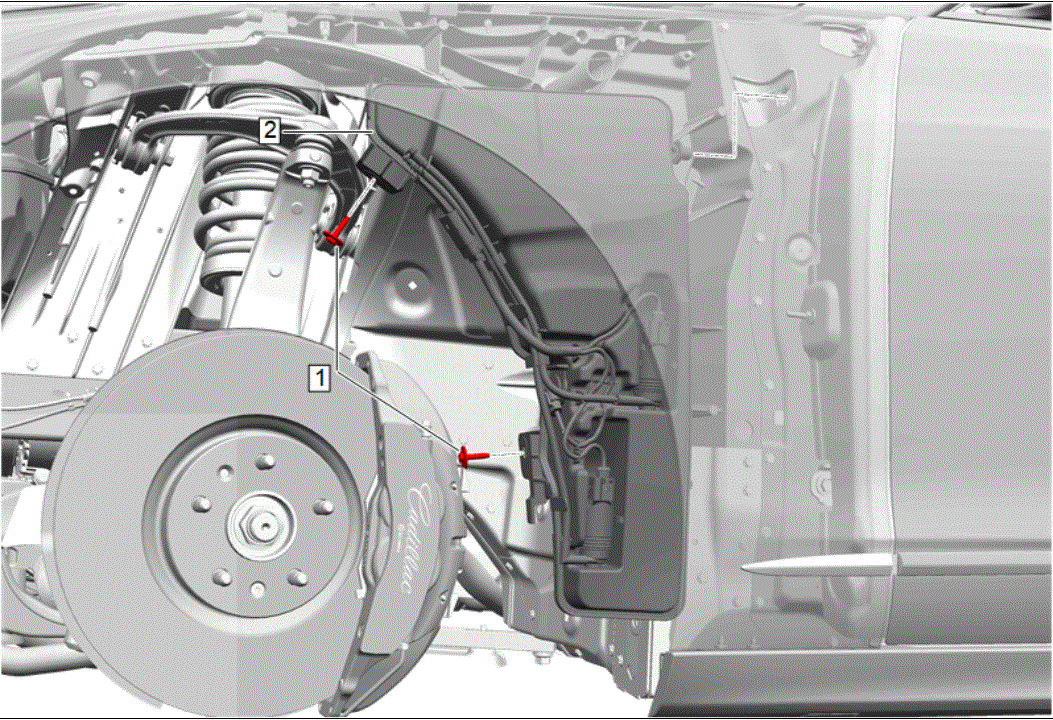

GM5448262Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Washer Solvent Container Filler Tube Replacement
  2. Remove the left front wheelhouse liner. Front Wheelhouse Liner Replacement (CT6)Front Wheelhouse Liner Replacement (CT6-V)
  3. Disconnect the windshield washer pump hoses. Windshield Washer Pump Hose Replacement (Without LTA, Night Vision Camera) Windshield Washer Pump Hose Replacement (Without LTA, Windshield) Windshield Washer Pump Hose Replacement (With LTA)
1 Windshield Washer Solvent Container Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9N.m (80 lb in)
2 Windshield Washer Solvent Container

Procedure

  1. Disconnect and reposition harness as necessary.
  2. Transfer components as necessary.
  3. Fill and inspect the windshield washer solvent container for leaks.
