Windshield Washer Pump Hose Replacement (With LTA)

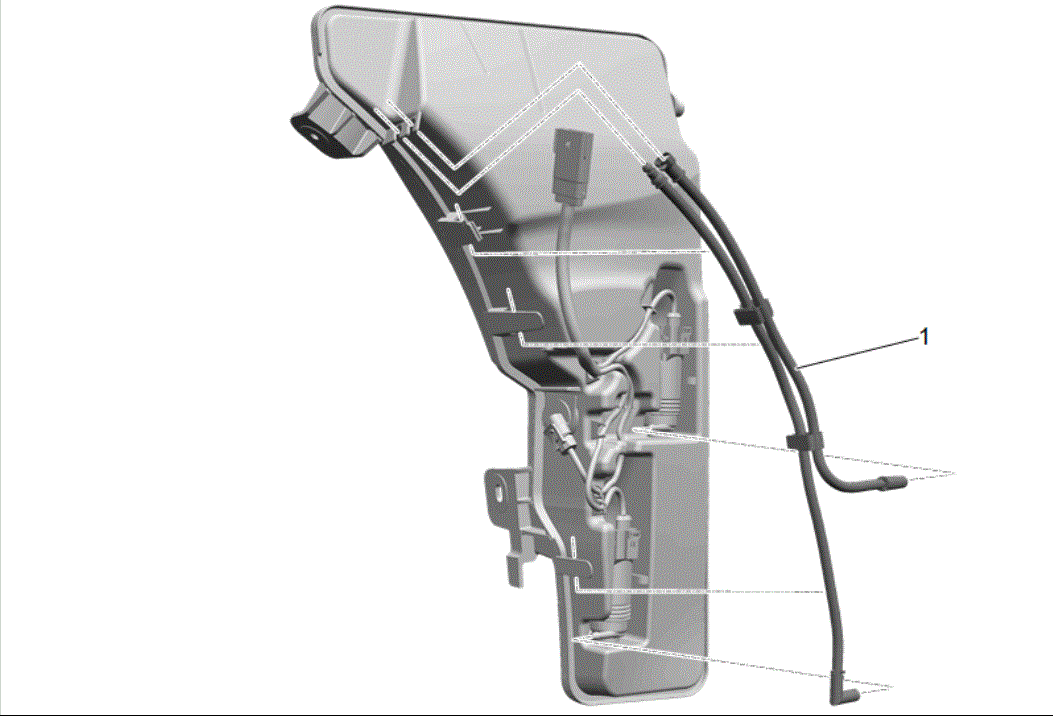

GM5448264Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Washer Solvent Container Replacement (Without LTA) Windshield Washer Solvent Container Replacement (With LTA)
  2. Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the washer pump hose is disconnected.
1 Windshield Washer Pump Hose

Procedure

  1. Disconnect and reposition harness as necessary.
  2. Disconnect the windshield washer pump hose from the two windshield washer pumps.
  3. Disconnect the windshield washer pump hose from the two windshield washer nozzle hoses.
  4. Remove the windshield washer pump hose from the windshield washer solvent container.
