Front Wheelhouse Liner Replacement (CT6)

Courtesy of GENERAL MOTORS COMPANY

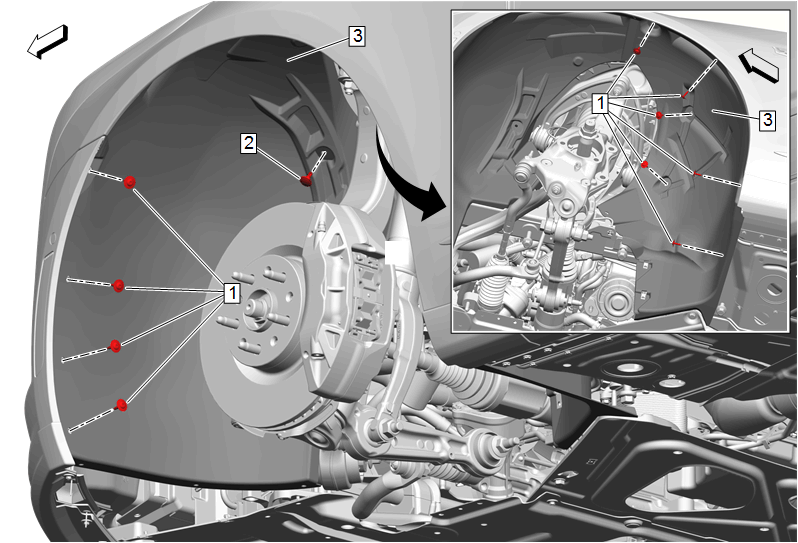

Callout	Component Name
Preliminary Procedures Front Wheelhouse Panel Extension Replacement (CT6) Front Wheelhouse Panel Extension Replacement (CT6-V) Engine Front Splash Shield Replacement Engine Front Splash Rear Shield Replacement
1	Front Wheelhouse Liner Bolt [10x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Wheelhouse Liner Retainer
3	Front Wheelhouse Liner
