Windshield Washer Pump Hose Replacement (Without LTA, Night Vision Camera)

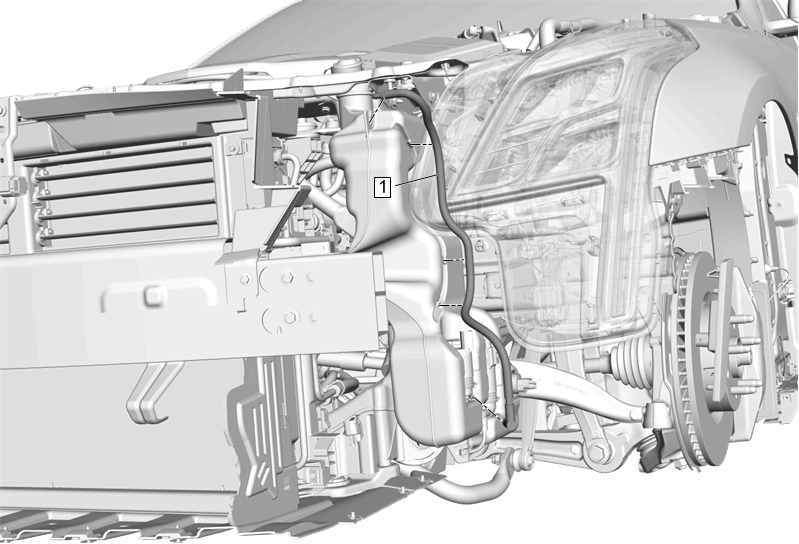

GM4258796

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement

1

Windshield Washer Pump Hose

Procedure

Disconnect the windshield washer pump hose from the windshield washer pump.
Disconnect the windshield washer pump hose from the windshield washer solvent container.
Disconnect the windshield washer pump hose from the night vision camera cleaning hose.
Remove windshield washer pump hose from the vehicle.
