Windshield Washer Pump Hose Replacement (Without LTA, Windshield)

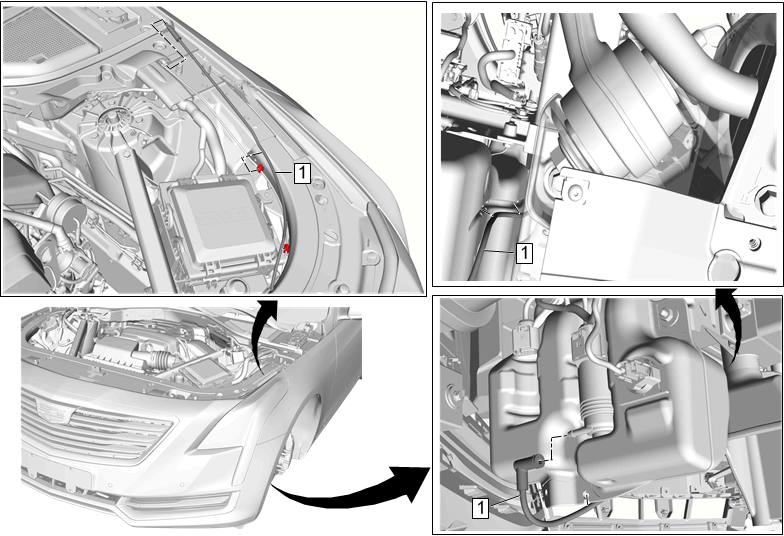

GM4247296Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Wheelhouse Panel Extension Replacement (CT6)Front Wheelhouse Panel Extension Replacement (CT6-V)
  2. Front Wheelhouse Liner Replacement (CT6)Front Wheelhouse Liner Replacement (CT6-V)
1 Windshield Washer Pump Hose

Procedure

  1. Disconnect the windshield washer pump hose from the windshield washer pump.
  2. Disconnect the windshield washer pump hose from the windshield washer solvent container.
  3. Release the windshield washer pump hose from the hood primary latch release cable clip.
  4. Disconnect the windshield washer pump hose from the windshield washer nozzle hose.
  5. Pull the windshield washer pump hose up through the front wheelhouse panel and remove from the vehicle.
