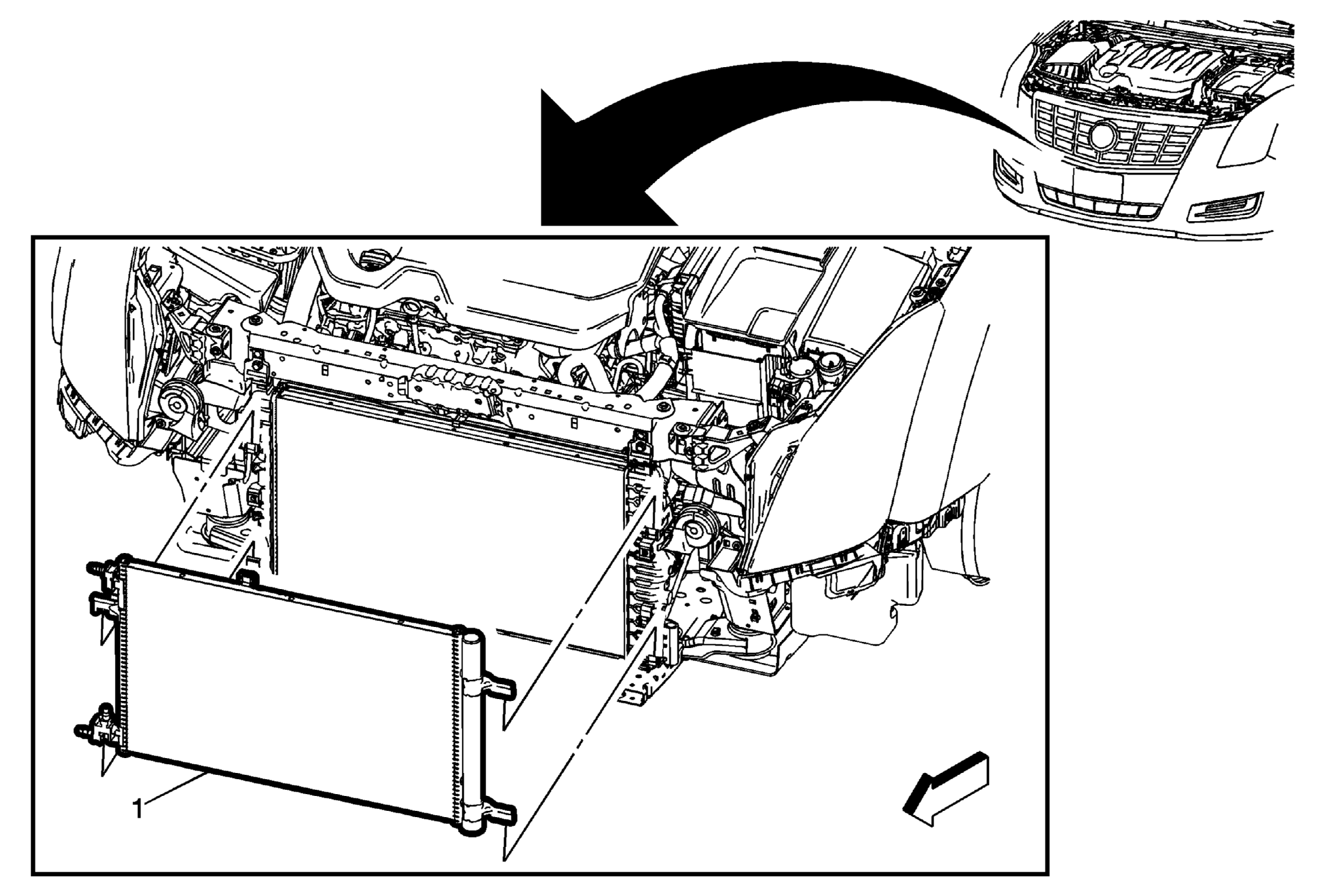

Air Conditioning Condenser Replacement (LFX)

Preliminary Procedures

1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf) .
2. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
3. Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement .
4. Remove the radiator air side left and right baffles. Refer to Radiator Air Side Baffle Replacement - Left Side (LFX) and Radiator Air Side Baffle Replacement - Right Side .
5. Remove the air conditioning compressor hose. Refer to Air Conditioning Compressor Hose Replacement (LFX without V4U) Air Conditioning Compressor Hose Replacement (LFX with V4U) .
6. Remove the air conditioning evaporator hose. Refer to Air Conditioning Evaporator Hose Assembly Replacement (without V4U) Air Conditioning Evaporator Hose Assembly Replacement (with V4U) .
7. Remove the transmission fluid auxiliary cooler if equipped. Refer to Transmission Fluid Auxiliary Cooler Replacement .
