Front Bumper Fascia Replacement

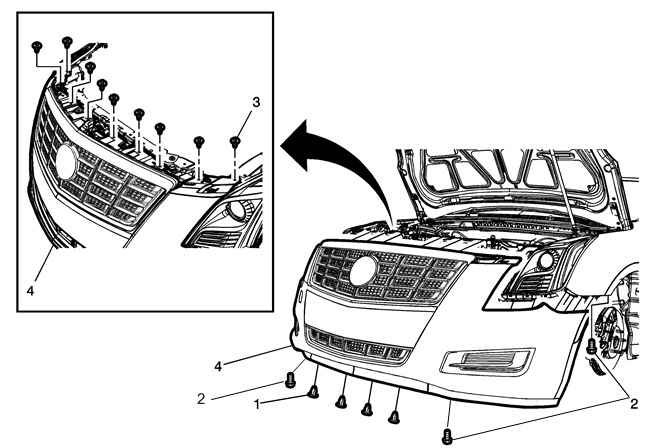

Fig 1: Front Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Wheelhouse Front Liner Replacement . Front Compartment Front Sight Shield Replacement .
1	Front Bumper Fascia Lower Push-In Retainer (Qty: 4)
2	Front Bumper Fascia Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Front Bumper Fascia Upper Screw (Qty: 10) Tighten 3 N.m (27 lb in)
4	Front Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide. Disconnect all electrical connectors. Transfer components as necessary.
