Radiator Air Upper Baffle and Deflector Replacement

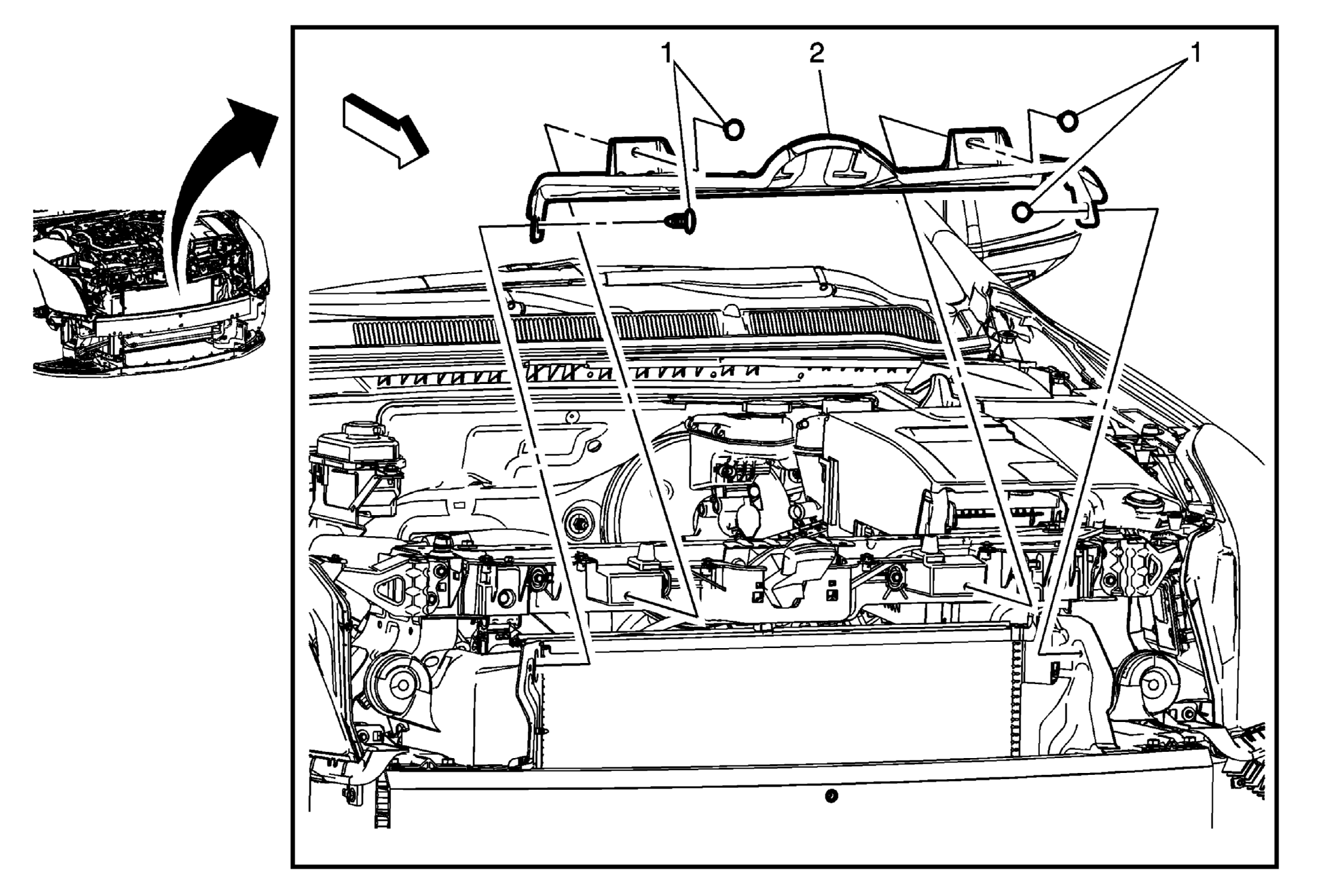

Fig 1: Radiator Air Upper Baffle & Deflector With Retainers
GM2770723Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
1 Radiator Air Upper Baffle and Deflector Retainer (Qty: 4)
2 Radiator Air Upper Baffle and Deflector
