Radiator Air Side Baffle Replacement - Left Side (LFX)

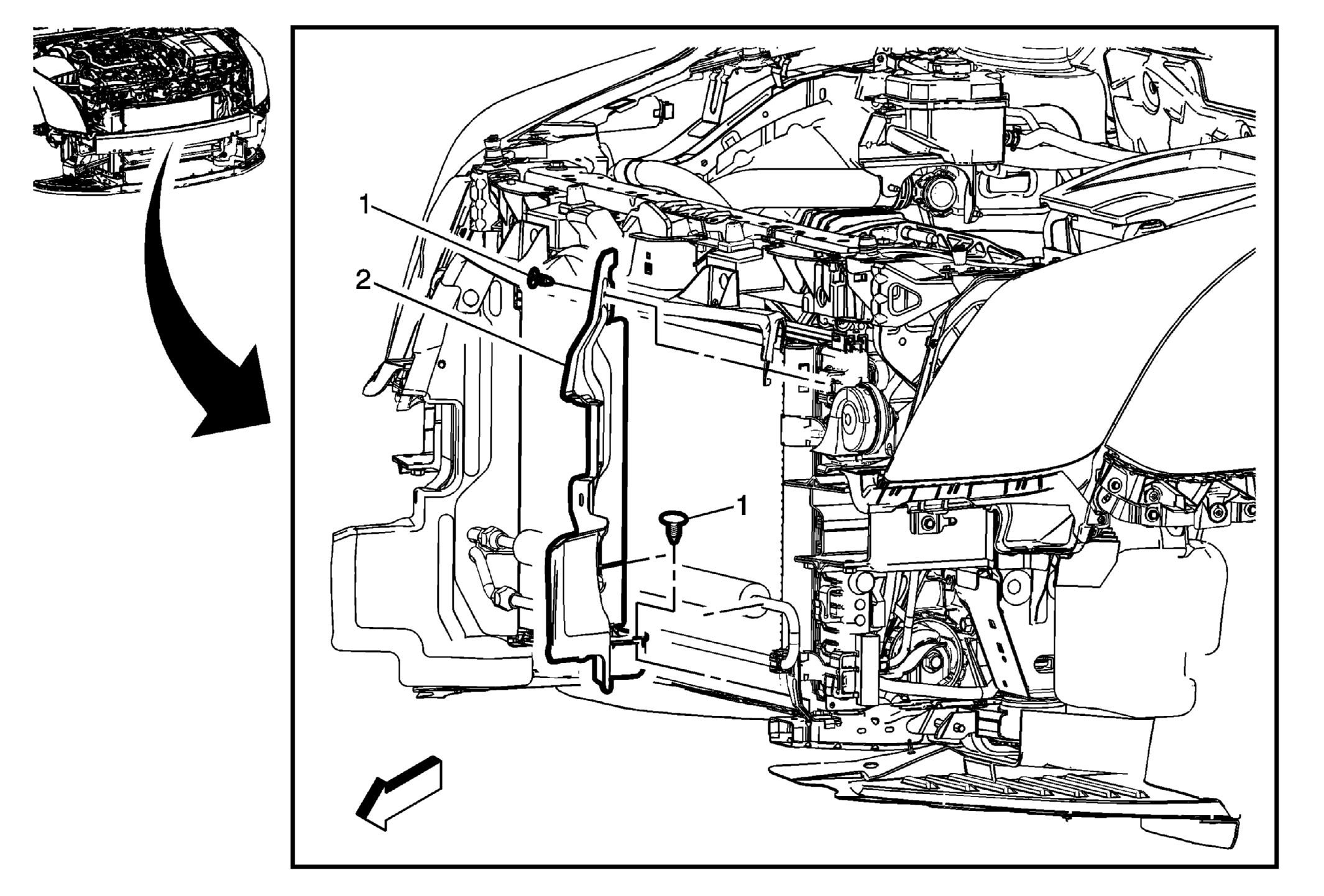

Fig 1: Radiator Air Side Baffle & Retainers - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the retainer attaching the radiator air upper baffle and deflector to the left side air baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 3)
2	Radiator Air Side Baffle and Deflector

Callout

Component Name

Preliminary Procedure

Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the retainer attaching the radiator air upper baffle and deflector to the left side air baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement .

Radiator Air Side Baffle and Deflector Retainer (Qty: 3)

Radiator Air Side Baffle and Deflector
