Radiator Air Side Baffle Replacement - Right Side

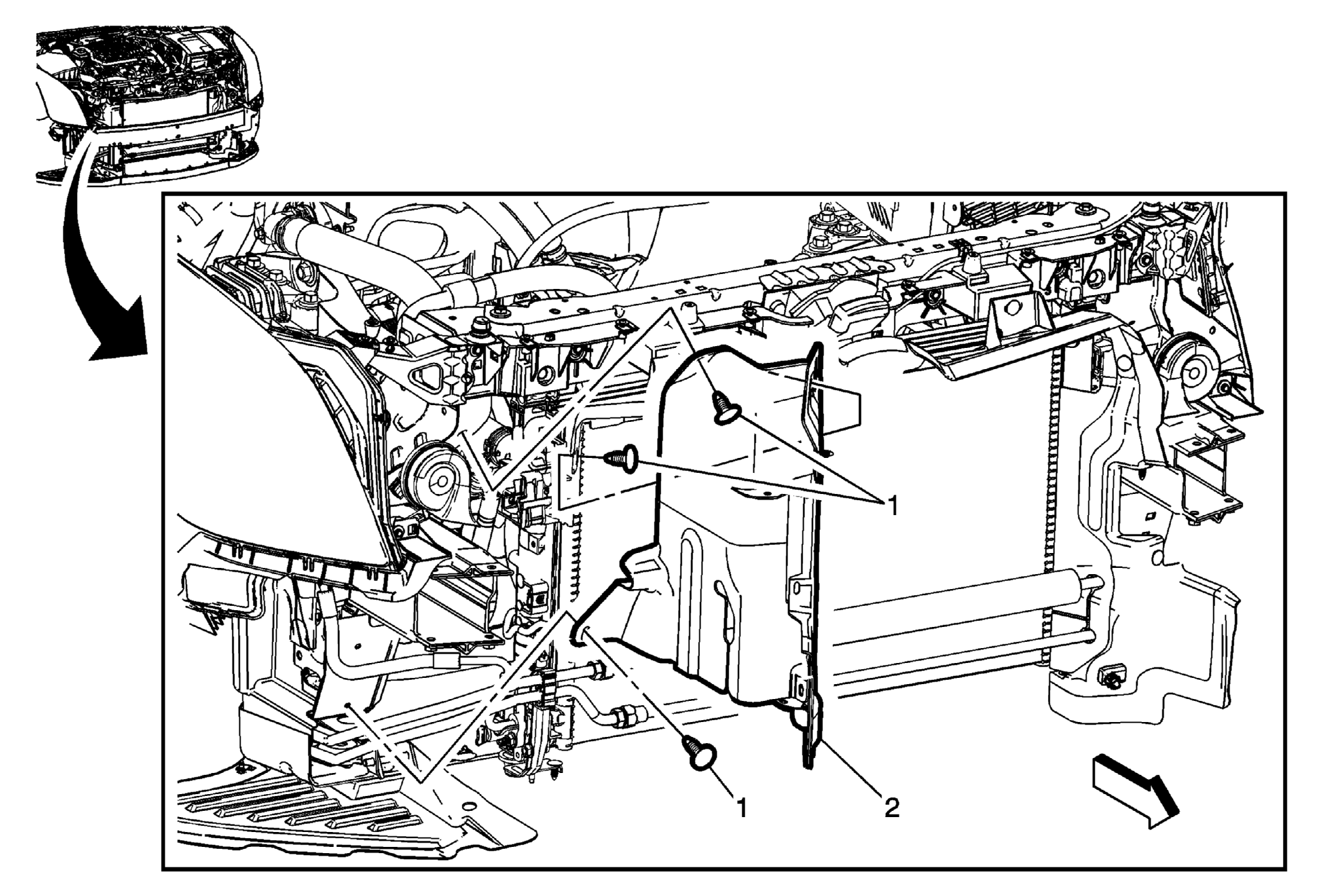

Fig 1: Radiator Air Side Baffle & Retainers - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty: 6)
2	Radiator Air Side Baffle and Deflector Procedure  Remove the radiator air seal from the radiator air side baffle and deflector if replacing the radiator air side baffle and deflector.
