Water Outlet Replacement (LT4)

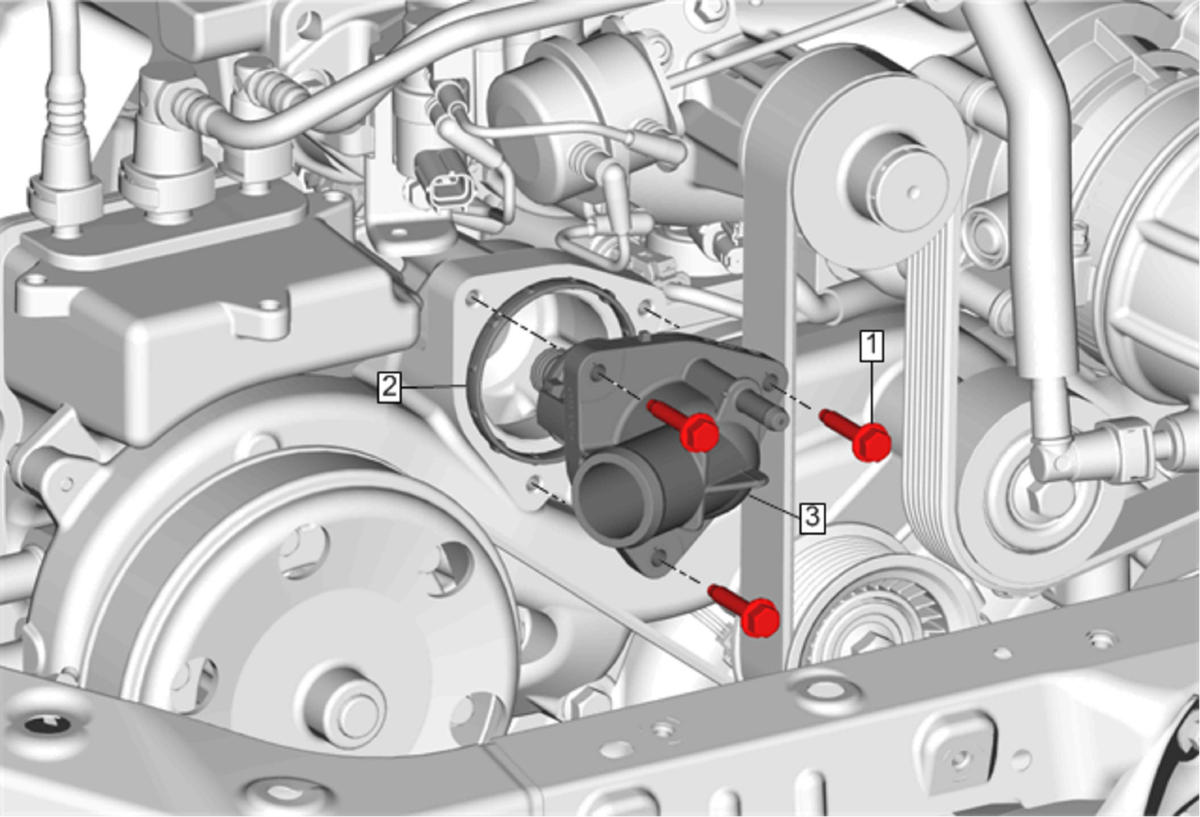

Fig 1: Water Outlet (LT4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement - Front Radiator Surge Tank Inlet Hose@Water Outlet»Disconnect - Radiator Surge Tank Inlet Hose Replacement (LTG) Radiator Surge Tank Inlet Hose Replacement (LF3) Radiator Surge Tank Inlet Hose Replacement (LT4) Radiator Surge Tank Inlet Hose Replacement (LGX) Radiator Inlet Hose@Water Outlet»Disconnect - Radiator Inlet Hose Replacement (LTG) Radiator Inlet Hose Replacement (LF3) Radiator Inlet Hose Replacement (LT4) Radiator Inlet Hose Replacement (LGX) Radiator Inlet Hose Replacement (LTG with KL9 V03)
1	Water Outlet Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Water Outlet Seal Procedure Install a NEW seal.
3	Water Outlet
