Radiator Inlet Hose Replacement (LTG)

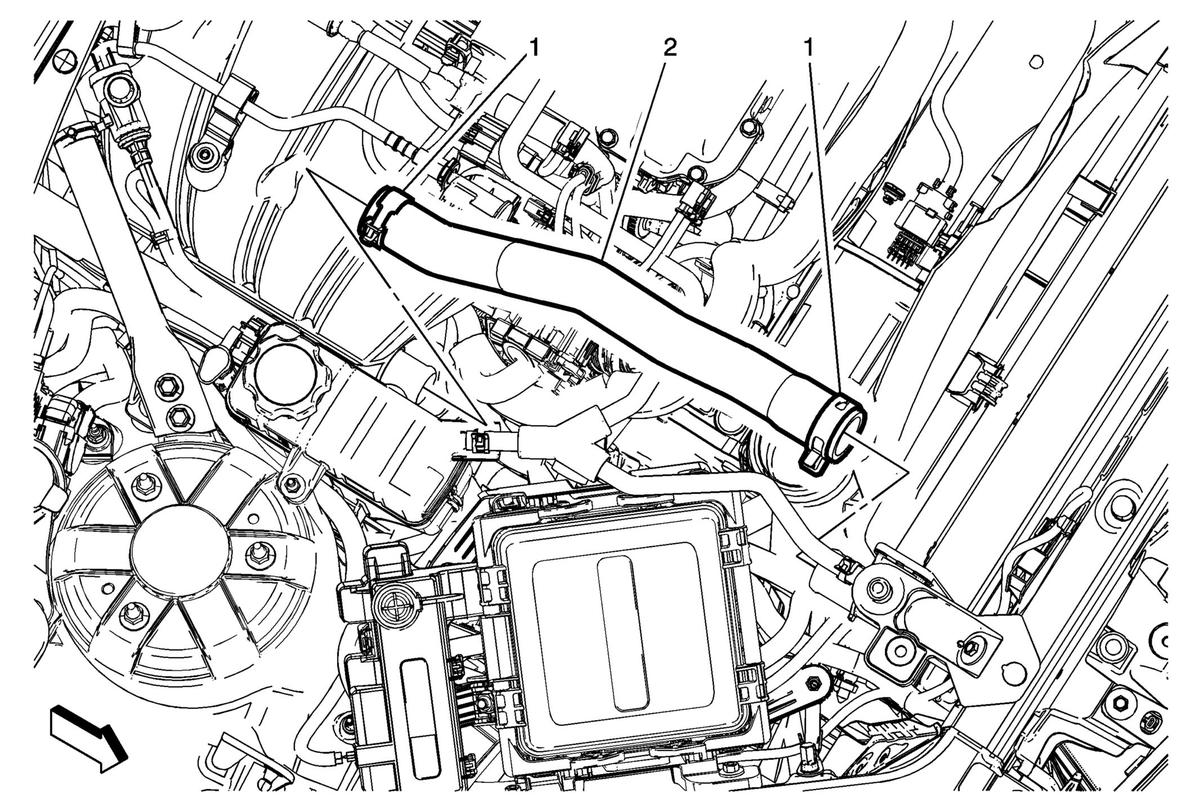

Fig 1: Radiator Inlet Hose (LTG)
GM2873328Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) .
1 Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Reposition the radiator inlet hose clamps using the BO-38185  hose clamp pliers.
Special Tools
BO-38185  Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .
2 Radiator Inlet Hose

Procedure

  1. Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) .
  2. Inspect the cooling system for leaks.
