Radiator Surge Tank Inlet Hose Replacement (LTG)

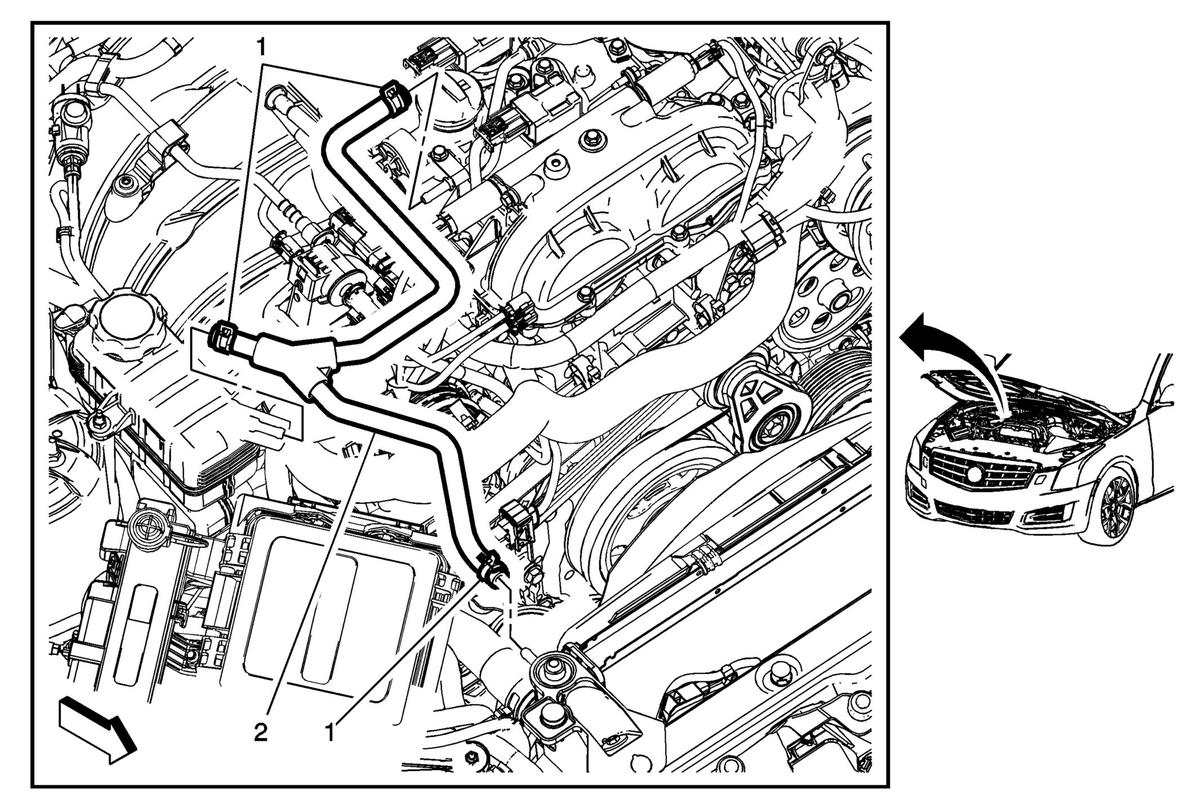

Fig 1: Radiator Surge Tank Inlet Hose (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (CTS)Front Compartment Front Sight Shield Replacement (CTS-V) .
1	Radiator Surge Tank Inlet Hose Clamp (Qty: 3) Procedure Reposition the radiator surge tank inlet hose clamps using BO-38185 Hose Clamp Pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Surge Tank Inlet Hose Procedure Fill coolant to the proper level. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) . Inspect cooling system for leaks. Refer to Cooling System Leak Testing .

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (CTS)Front Compartment Front Sight Shield Replacement (CTS-V) .

Radiator Surge Tank Inlet Hose Clamp (Qty: 3)
Procedure
Reposition the radiator surge tank inlet hose clamps using BO-38185 Hose Clamp Pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Surge Tank Inlet Hose

Procedure

Fill coolant to the proper level. Refer to Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716) .
Inspect cooling system for leaks. Refer to Cooling System Leak Testing .
