Rear Seat Back Cushion Latch Replacement (Coupe)

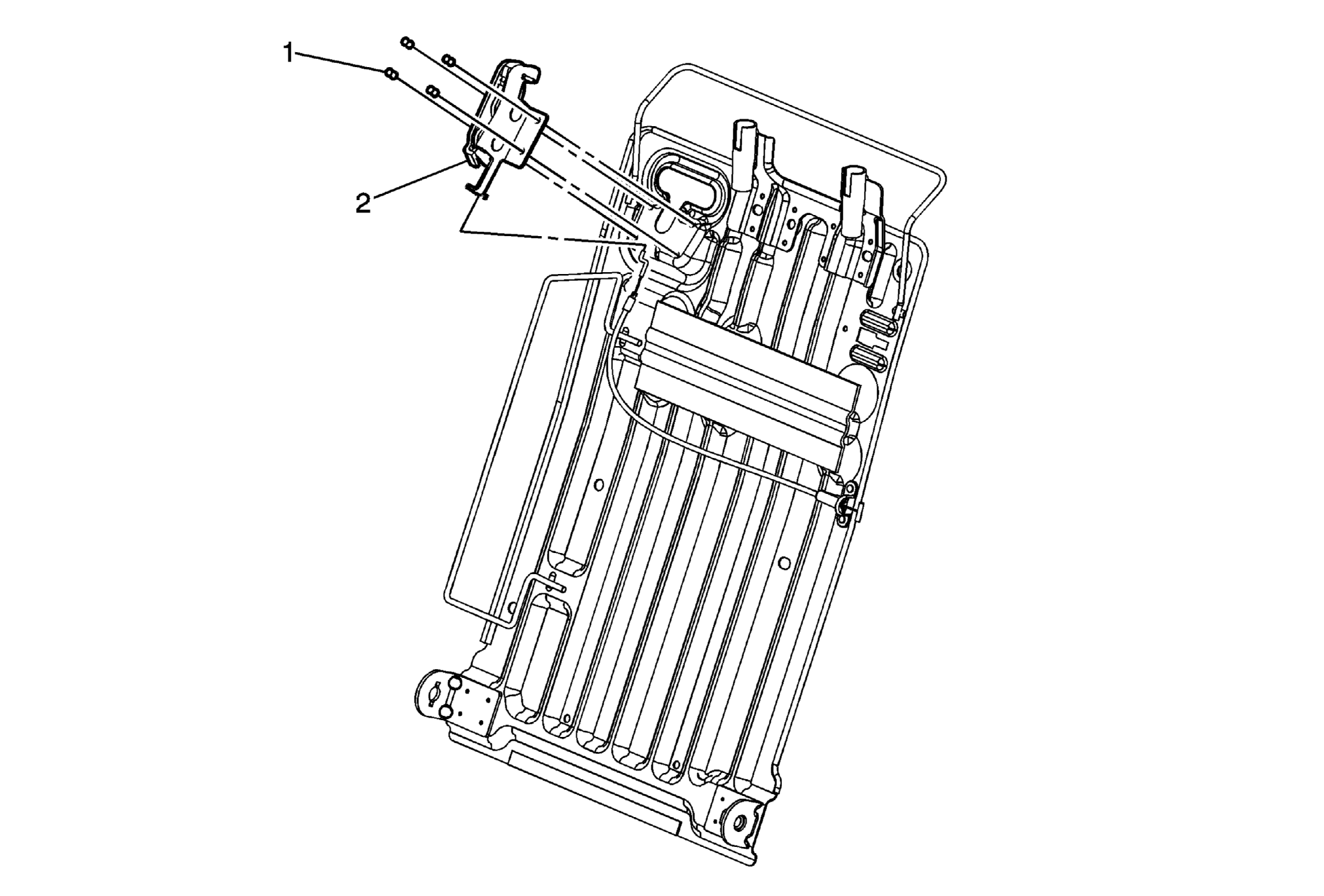

Fig 1: Rear Seat Back Cushion Latch & Fasteners (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (without AM9) Rear Seat Back Cushion Cover and Pad Replacement (side with AM9) Rear Seat Back Cushion Cover and Pad Replacement (with AM9)
1	Rear Seat Back Cushion Latch Fastener (Qty: 4) WARNING: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Preliminary Procedure Drill out all of the guide rivets before removing the cushion latch.
2	Rear Seat Back Cushion Latch Procedure Disengage the lock release cable from the latch assembly. Transfer components as necessary. When re-installing the cushion latch, re-rivet at the same location on the cushion frame with new rivets. Note the location and routing of the lock release cable prior to removal in order to ensure proper reinstallation.

Callout

Component Name

Preliminary Procedure

Rear Seat Back Cushion Latch Fastener (Qty: 4)

WARNING:

Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

Preliminary Procedure
Drill out all of the guide rivets before removing the cushion latch.

Rear Seat Back Cushion Latch

Procedure

Disengage the lock release cable from the latch assembly.
Transfer components as necessary.
When re-installing the cushion latch, re-rivet at the same location on the cushion frame with new rivets.
Note the location and routing of the lock release cable prior to removal in order to ensure proper reinstallation.
