Rear Seat Cushion Frame Replacement (60 Percent Seat)

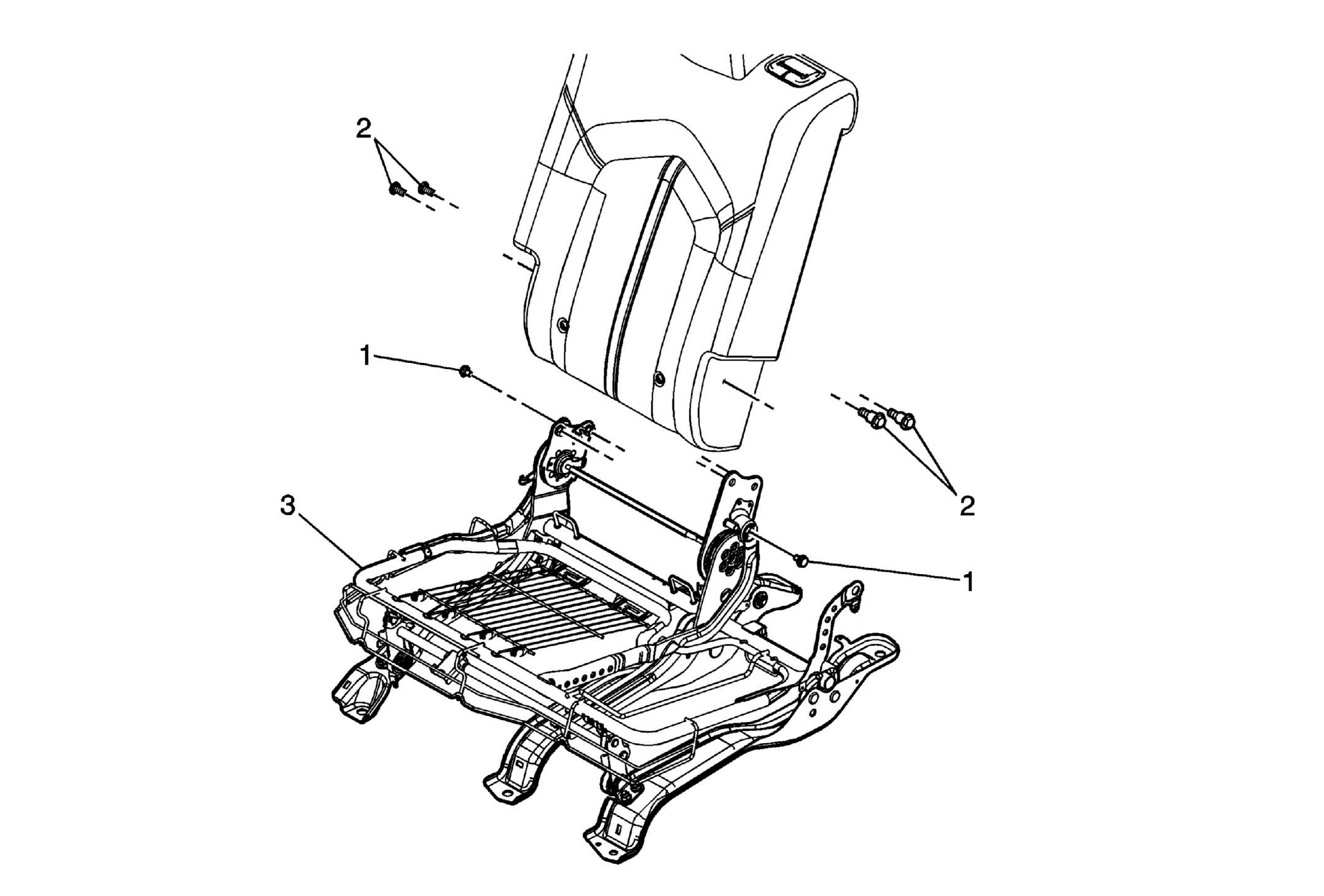

Fig 1: View Of Rear Seat Cushion Frame (60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation . Remove the rear seat center belt retractor anchor bolt. Refer to Rear Seat Center Belt Replacement . Remove the rear seat back cushion center panel. Refer to Rear Seat Back Cushion Center Panel Replacement . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (40 Percent Seat) , Rear Seat Cushion Cover and Pad Replacement (60 Percent Seat) .
1	Rear Seat Back Cushion Frame Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 21 N.m (15 lb ft)
2	Rear Seat Recliner Fastener (Qty: 4) Tighten 21 N.m (15 lb ft) Procedure Disengage the hog rings and j-channel retainers from the seat back cushion frame. Pull the cover away from the pad to gain access to the recliner fasteners.
3	Rear Seat Cushion Frame Procedure Disconnect the electrical connector. Transfer components as necessary. TIP: Note the routing of the electrical harness for installation.
