Rear Seat Cushion Cover and Pad Replacement (60 Percent Seat)

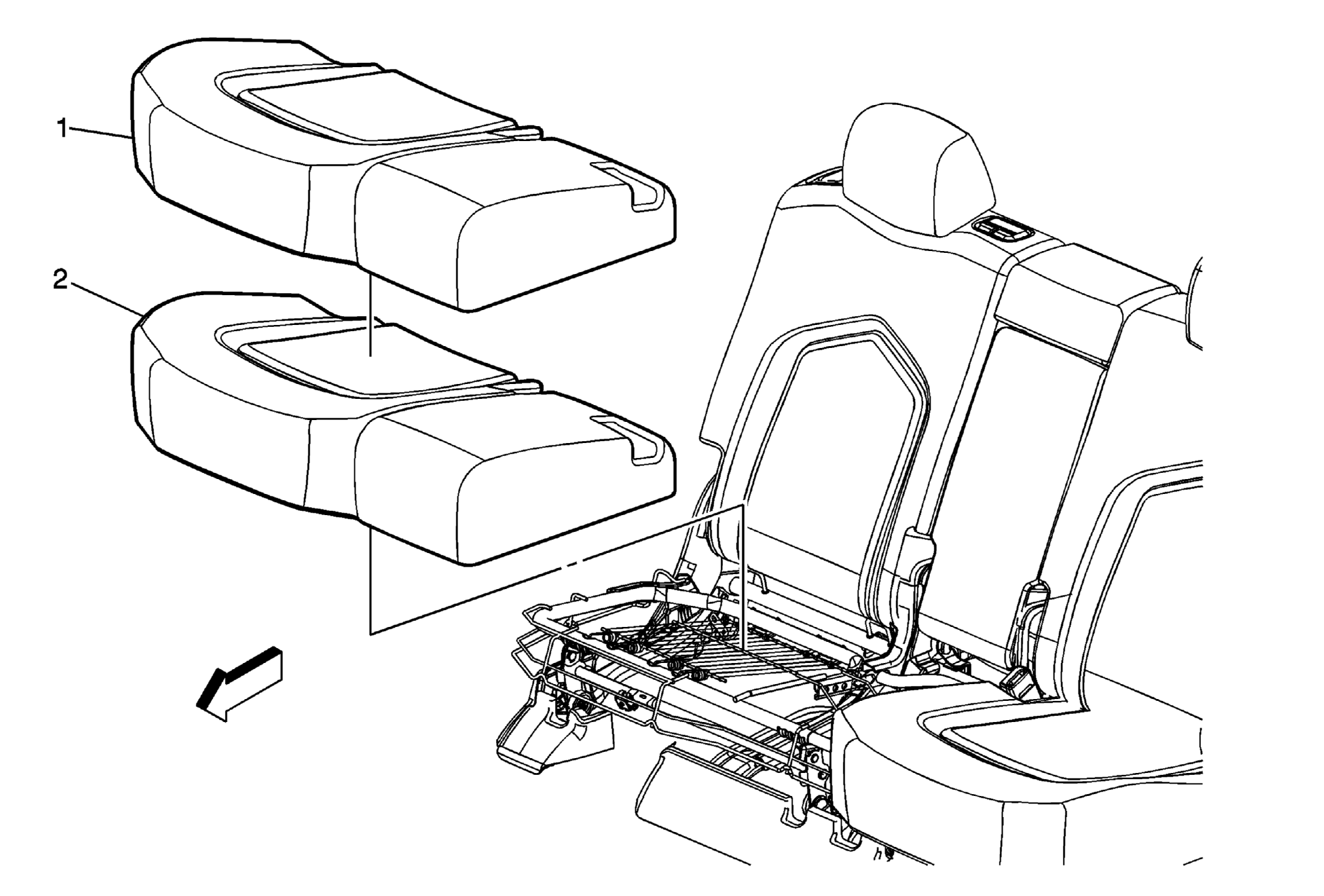

Fig 1: Identifying Rear Seat Cushion Cover & Pad (60 Percent Seat)
GM2234633Courtesy of GENERAL MOTORS COMPANY
Rear Seat Cushion Cover and Pad Replacement (60 Percent Seat)

Callout Component Name

Preliminary Procedure

  1. Remove the rear recliner outer finish cover. Refer to Rear Seat Recliner Outer Finish Cover Replacement (60 Percent Seat) , Rear Seat Recliner Outer Finish Cover Replacement (40 Percent Seat) .
  2. Remove the rear seat track rear outboard cover. Refer to Rear Seat Track Rear Outboard Cover Replacement .
  3. Remove the rear seat armrest hinge finish cover. Refer to Rear Seat Armrest Hinge Finish Cover Replacement
  4. Remove the rear seat recliner inner finish cover. Refer to Rear Seat Recliner Inner Finish Cover Replacement
1 Rear Seat Cushion Cover

Procedure

  1. Disengage the j-channel retainers from the seat cushion frame.
  2. Disconnect the electrical connectors that attach to the seat cushion, if equipped.
  3. Disconnect the hog rings that secure the rear seat cushion cover to the pad.
  4. Remove the seat cushion cover and pad from the seat cushion frame as an assembly.
2 Rear Seat Cushion Pad
Procedure
Pull the cover away from the pad to disengage the retainers.
