Rear Seat Back Cushion Center Panel Replacement

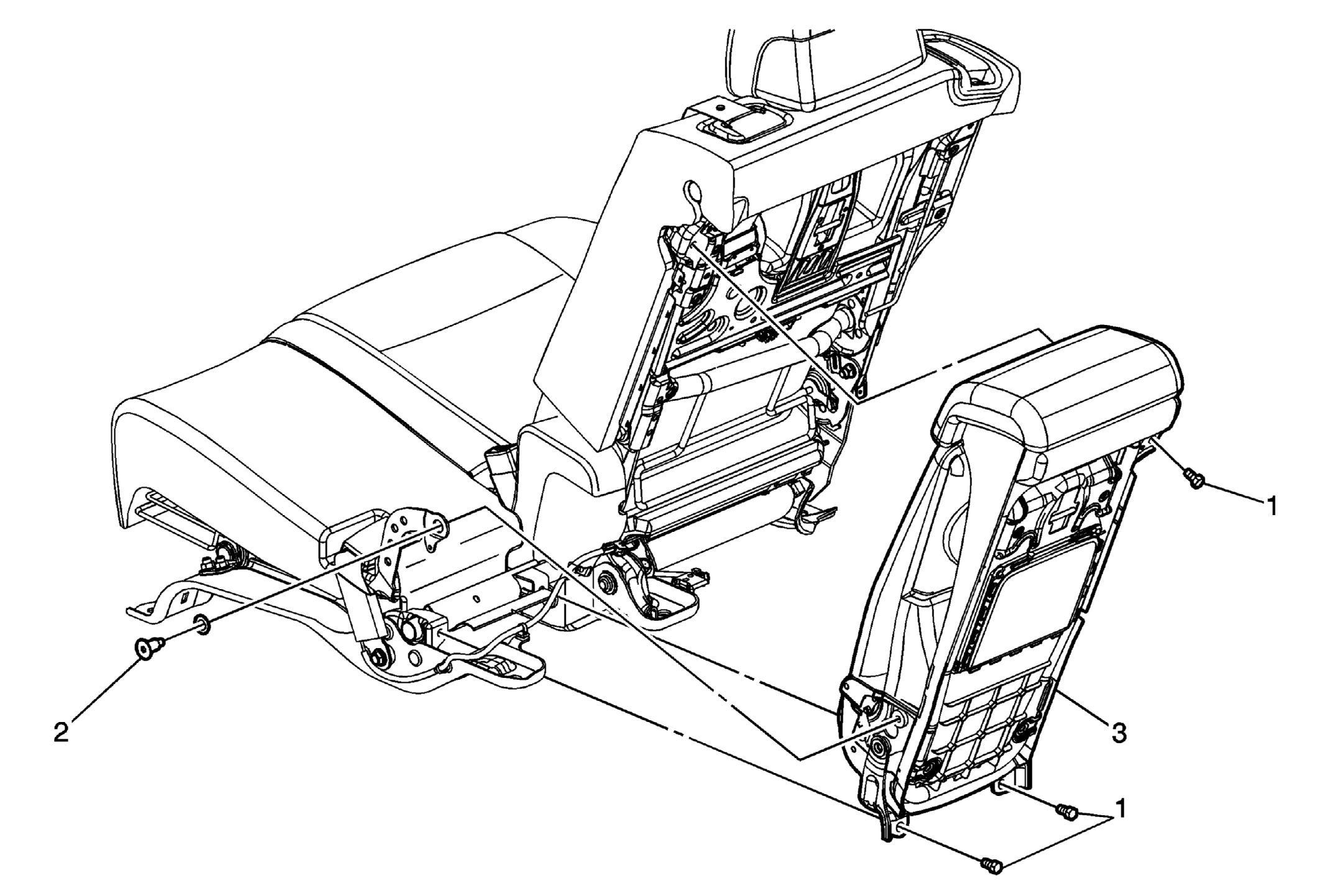

Fig 1: Identifying Rear Seat Back Cushion Center Panel & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear 60 percent seat. Refer to Rear Seat Removal and Installation . Remove the rear 60 percent seat back cushion filler panel. Refer to Rear Seat Back Cushion Filler Panel Replacement (40 Percent Seat) , Rear Seat Back Cushion Filler Panel Replacement (60 Percent Seat)
1	Rear Seat Back Cushion Center Panel Retainer (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 55 N.m (40 lb ft)
2	Rear Seat Back Cushion Center Panel Retainer
3	Rear Seat Back Cushion Center Panel Procedure Transfer components as necessary.
