Rear Seat Removal and Installation

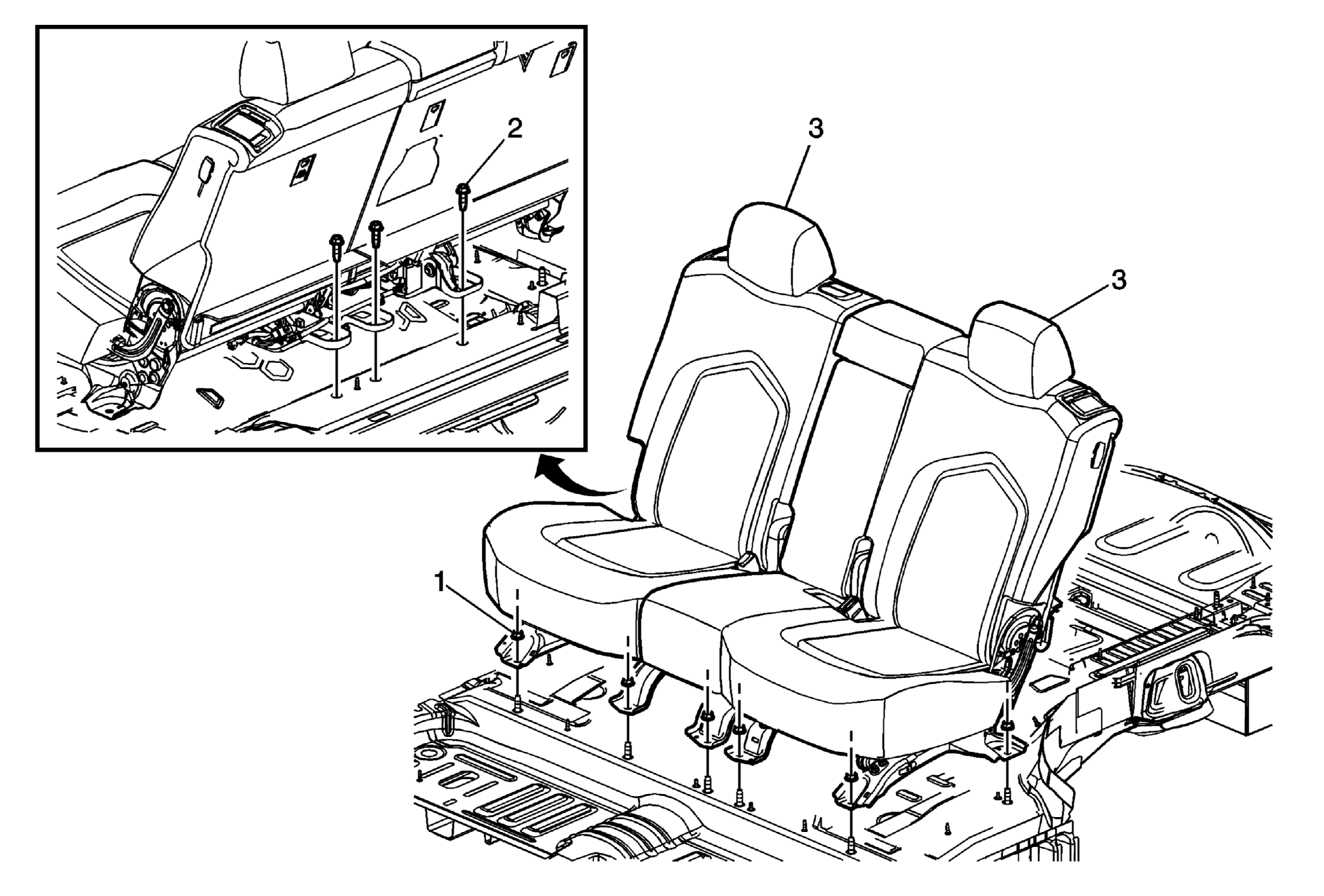

Fig 1: Identifying Rear Seats & Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio rear compartment speaker to gain access to the rear seat bolts. Refer to Radio Rear Compartment Speaker Replacement Remove the rear seat riser finish cover. Refer to Rear Seat Riser Finish Cover Replacement (Outboard) , Rear Seat Riser Finish Cover Replacement (Center) . Remove the rear seat shoulder belt anchor plate fasteners. Refer to Rear Seat Retractor Side Belt Replacement .
1	Rear Seat Nut (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Bolt (Qty: 3) Tighten 45 N.m (33 lb ft)
3	Rear Seat Assembly Procedure Disconnect the electrical connector. With the aid of an assistant, remove the rear seat from the vehicle. NOTE: Each seat can be removed separately.
