Rear Seat Center Belt Replacement
Rear Seat Center Belt Replacement

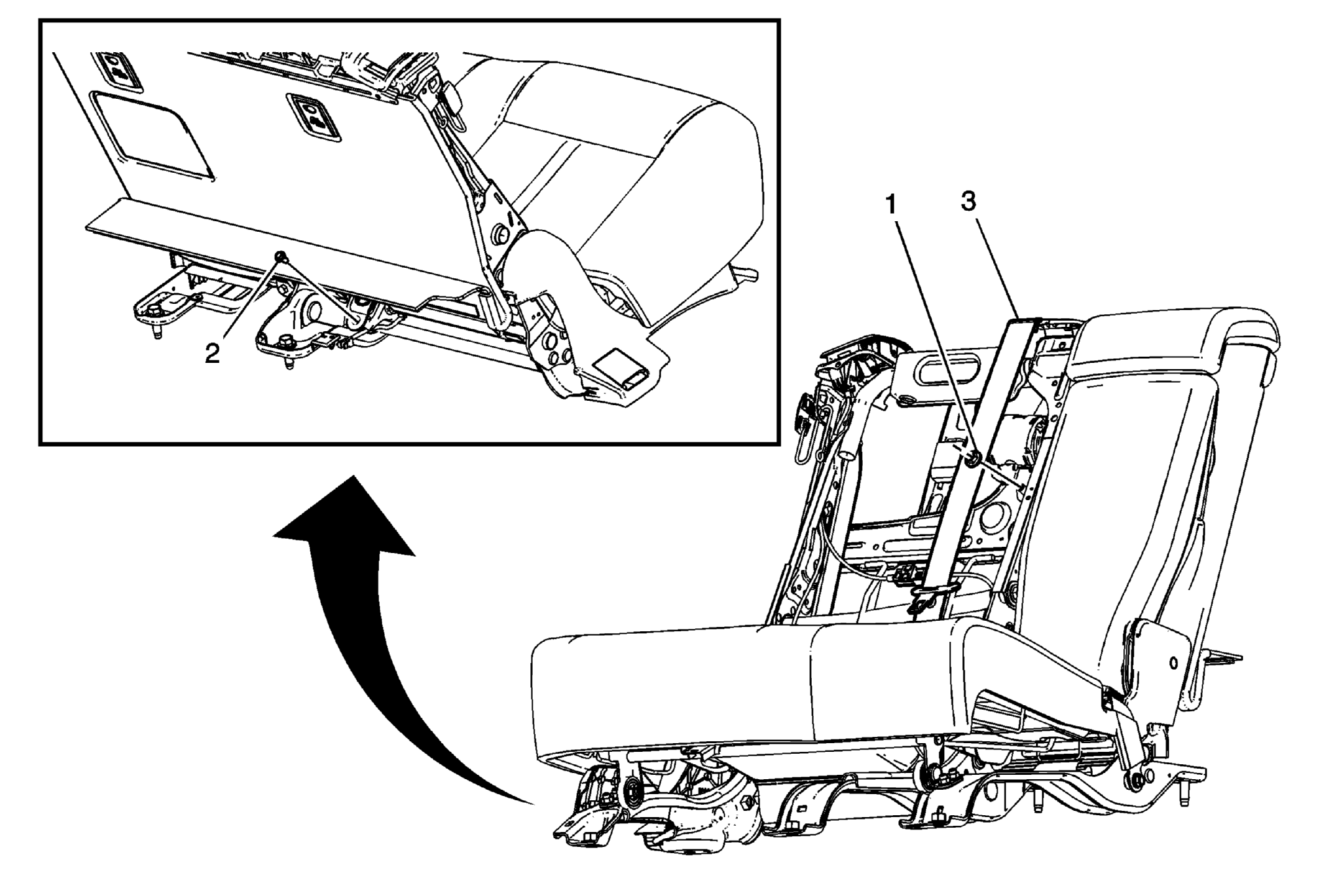

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion and cover. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Seat) . |
|
| 1 | Rear Seat Center Belt Retractor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Center Belt Retractor Anchor Fastener Tighten 45 N.m (33 lb ft) |
| 3 | Rear Seat Center Belt Retractor Assembly |
