Rear Seat Armrest Replacement

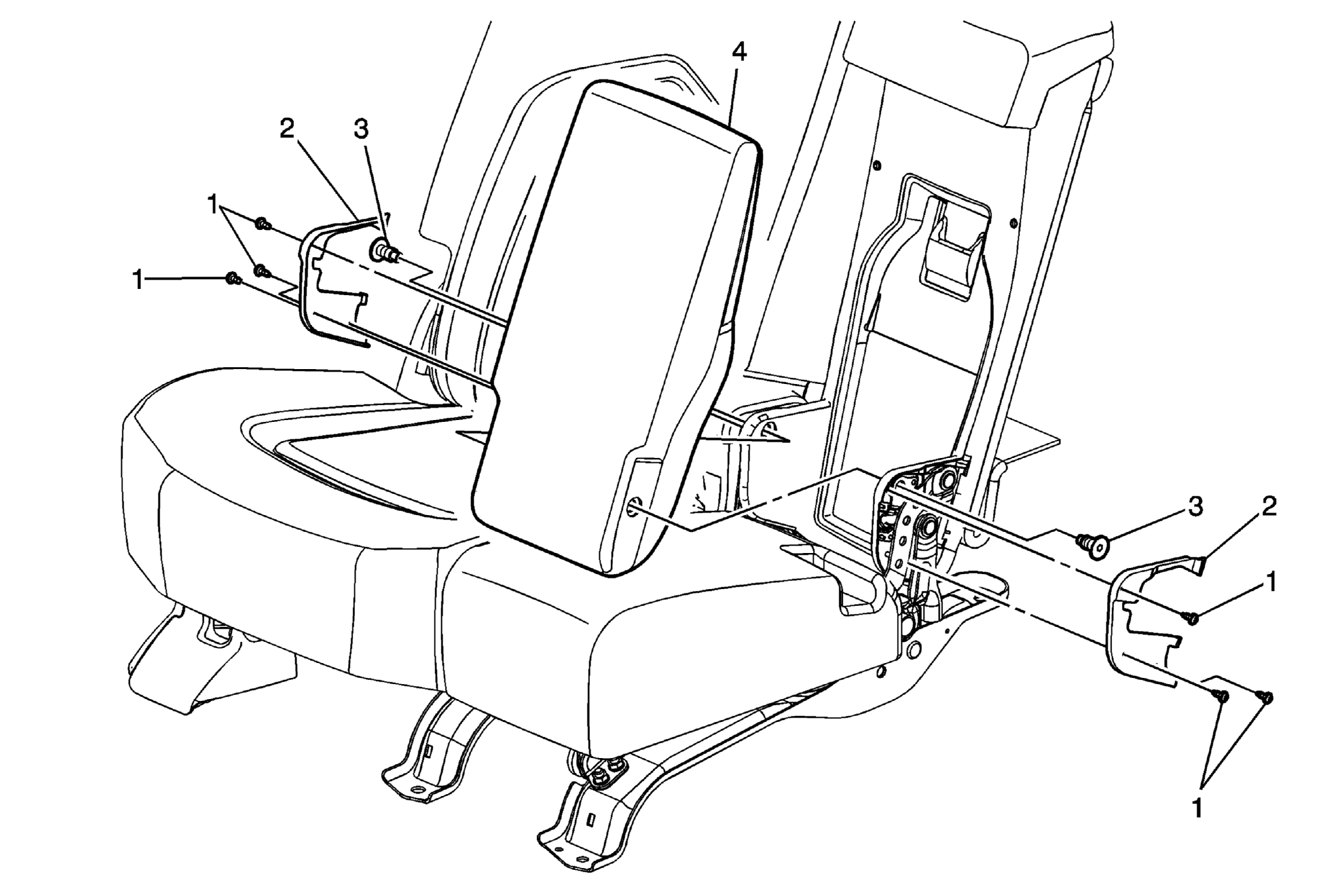

Fig 1: View Of Rear Seat Armrest, Cover & Retainers
GM2236270Courtesy of GENERAL MOTORS COMPANY
Rear Seat Armrest Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the 60% rear seat. Refer to Rear Seat Removal and Installation .
  2. Remove the rear seat armrest hinge finish cover. Refer to Rear Seat Armrest Hinge Finish Cover Replacement .
  3. Remove the rear seat back cushion filler panel. Refer to Rear Seat Back Cushion Filler Panel Replacement (40 Percent Seat) , Rear Seat Back Cushion Filler Panel Replacement (60 Percent Seat) .
  4. Remove the rear seat back cushion center panel. Refer to Rear Seat Back Cushion Center Panel Replacement .
1 Rear Seat Armrest Retainer (Qty: 6)
TIP:  Use a small flat-bladed tool to release the armrest retainer.
2 Rear Seat Armrest Opening Finish Cover
3 Rear Seat Armrest Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (25 lb in)
4 Rear Seat Armrest
