Rear Seat Back Cushion Filler Panel Replacement (60 Percent Seat)

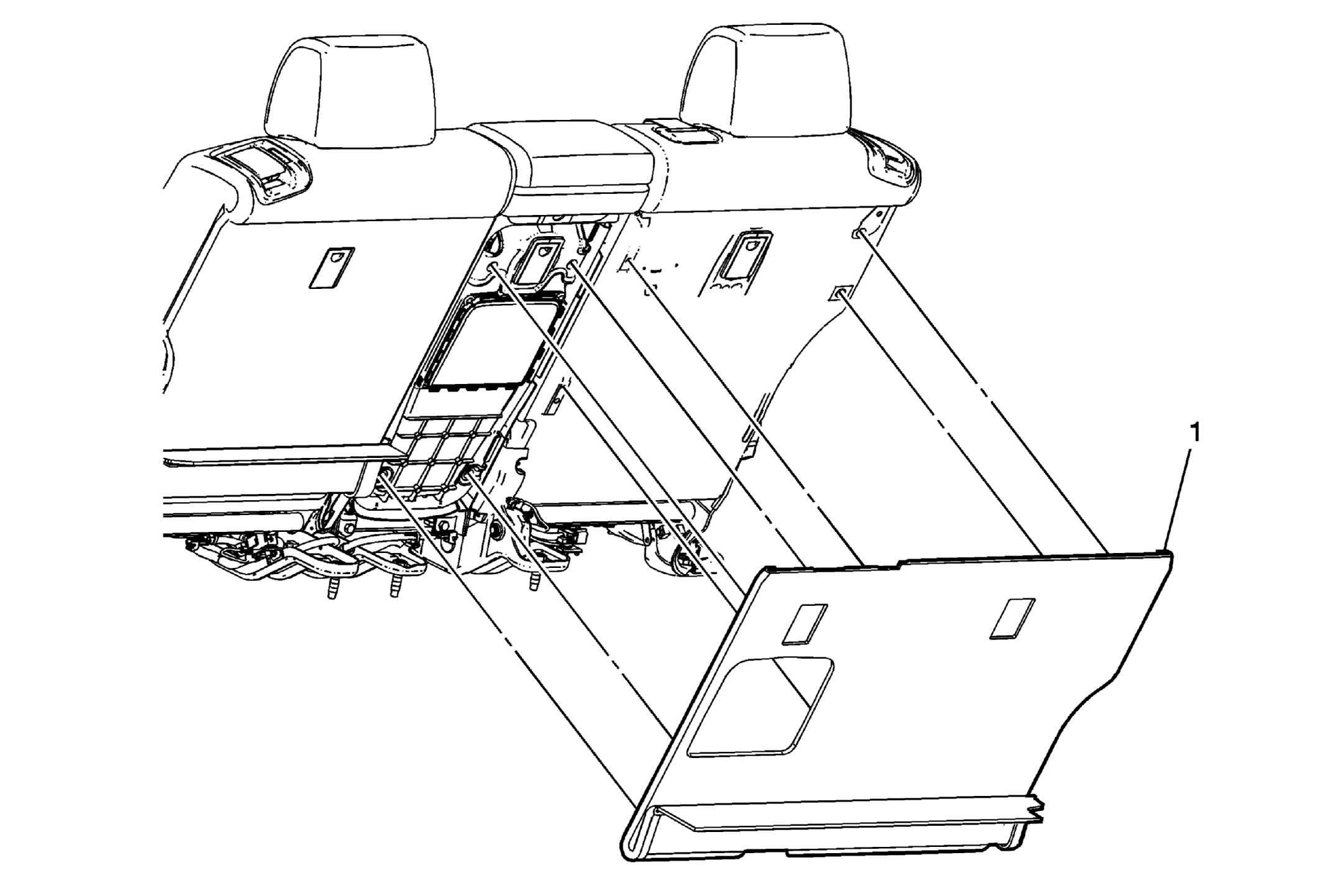

Fig 1: View Of Rear Seat Back Cushion Filler Panel (60 Percent Seat)
GM2219259Courtesy of GENERAL MOTORS COMPANY
Rear Seat Back Cushion Filler Panel Replacement (60 Percent Seat)

Callout Component Name

Preliminary Procedures

  1. Remove the child seat bracket trim cover. refer to Child Seat Bracket Access Hole Cover Replacement .
  2. Remove the rear seat back cushion armrest opening finish cover. Refer to Rear Seat Back Cushion Armrest Opening Finish Cover Replacement .
1 Rear Seat Back Cushion Filler Panel

Procedure

  1. Fold the rear seat back cushion assembly forward.
  2. Remove the hog rings that attach the filler panel tethers to the seat back frame.
  3. Disengage the rear seat back cushion filler panel from the seat back frame.
