Rear Seat Back Cushion Filler Panel Replacement (40 Percent Seat)

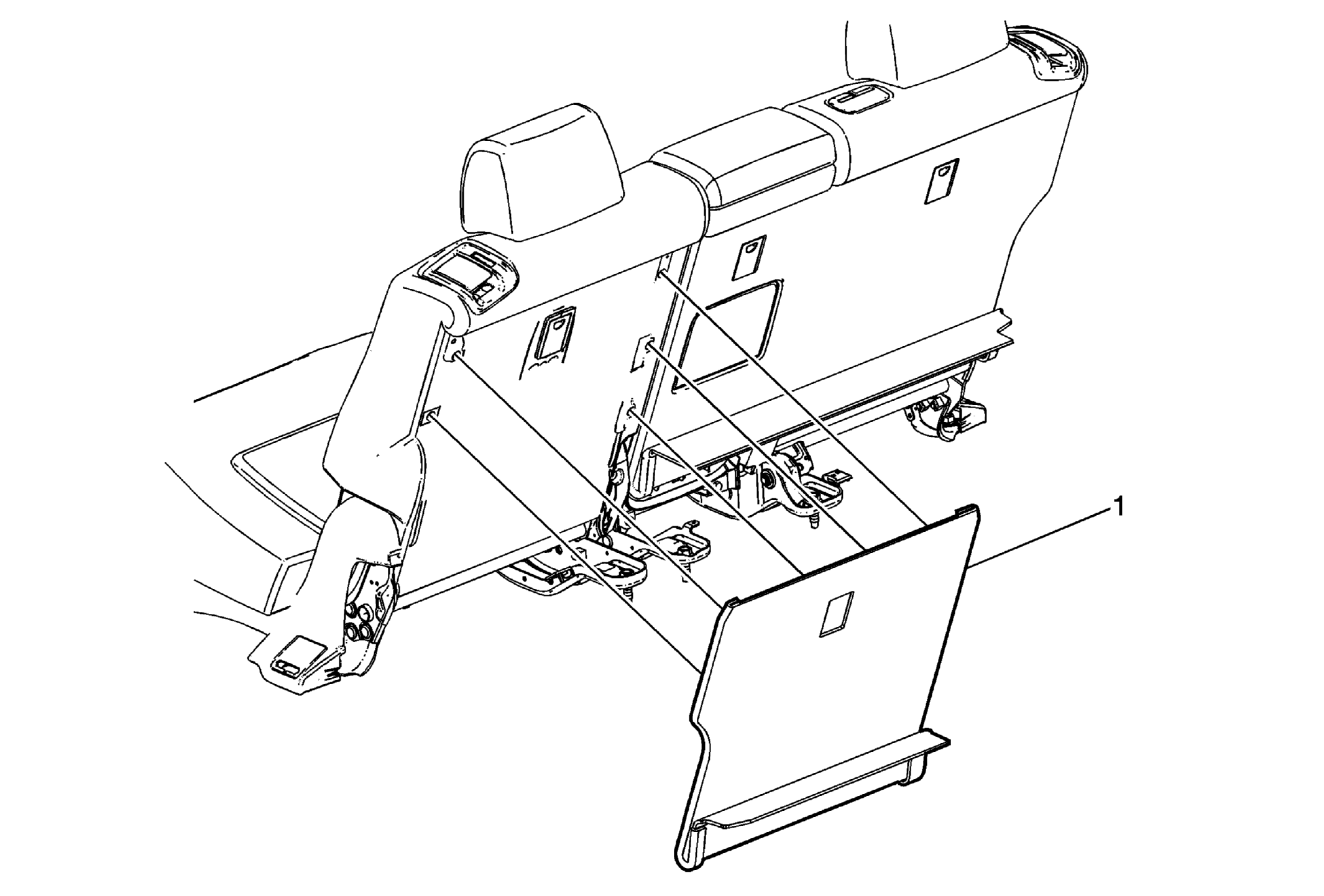

Fig 1: View Of Rear Seat Back Cushion Filler Panel (40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the child seat bracket trim cover. refer to Child Seat Bracket Access Hole Cover Replacement
1	Rear Seat Back Cushion Filler Panel Procedure Fold the rear seat back cushion assembly forward. Remove the hog rings that attach the filler panel tethers to the seat back frame. Disengage the rear seat back cushion filler panel from the seat back frame.

Callout

Component Name

Preliminary Procedure
Remove the child seat bracket trim cover. refer to Child Seat Bracket Access Hole Cover Replacement

Rear Seat Back Cushion Filler Panel

Procedure

Fold the rear seat back cushion assembly forward.
Remove the hog rings that attach the filler panel tethers to the seat back frame.
Disengage the rear seat back cushion filler panel from the seat back frame.
