Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

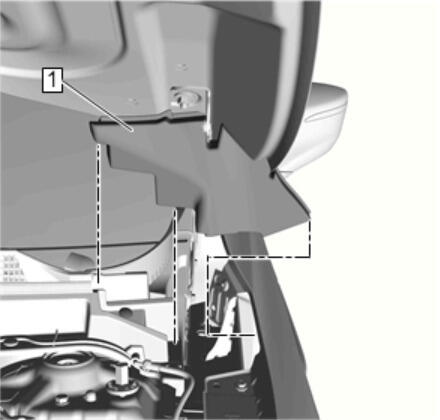

Intake Air Splash Shield (1) - Remove - Intake Air Splash Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Extension (1) - Remove - Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

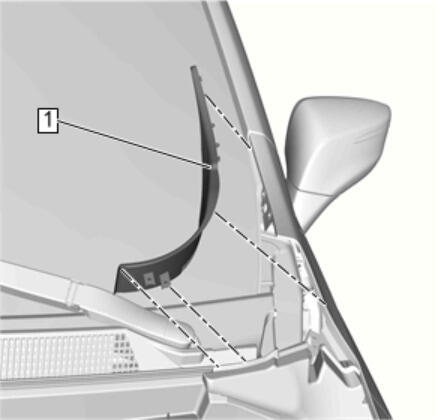

Hood Rear Outer Air Inlet Seal (1) - Remove - Hood Rear Outer Air Inlet Seal Replacement
Courtesy of GENERAL MOTORS COMPANY

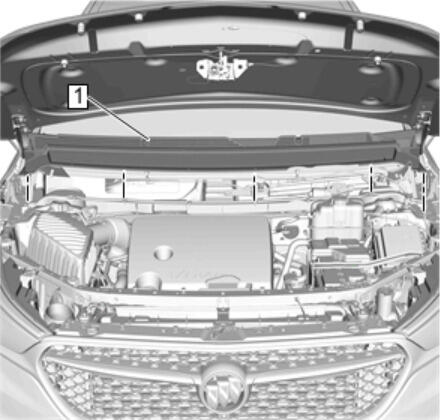

Air Inlet Grille Panel (1) - Remove - Air Inlet Grille Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

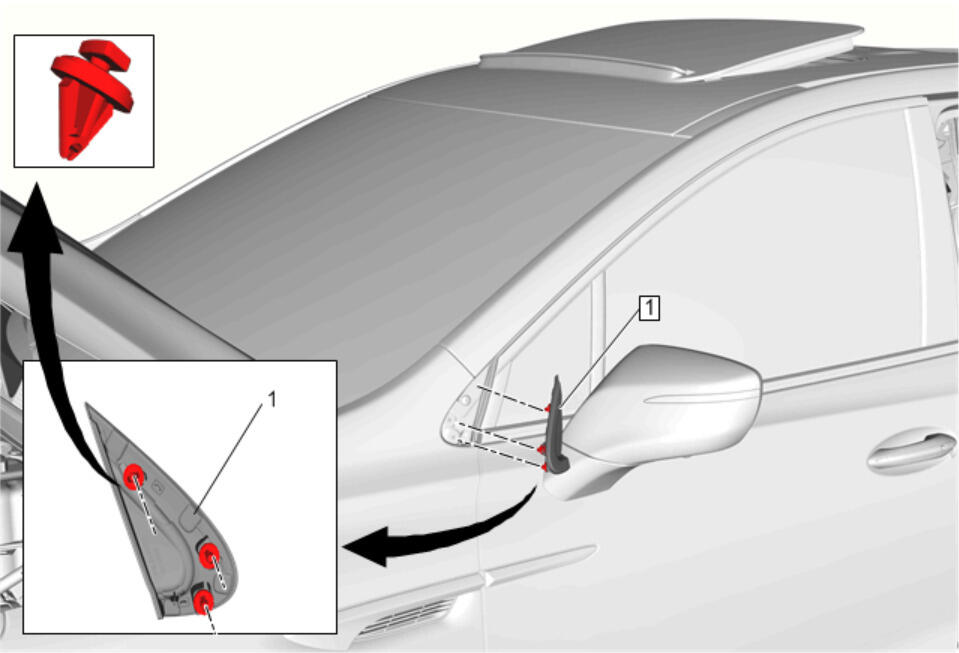

Front Fender Upper Rear Molding (1) - Remove - Front Fender Upper Rear Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

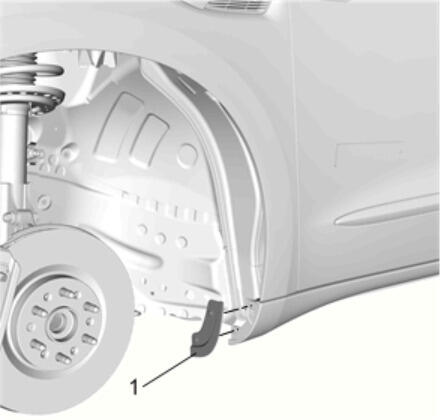

Front Fender Rear Air Deflector (1) - Remove - Front Fender Rear Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

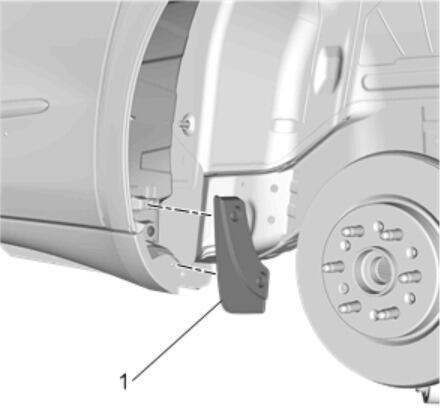

Rear Tire Front Air Deflector (1) - Remove - Rear Tire Front Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

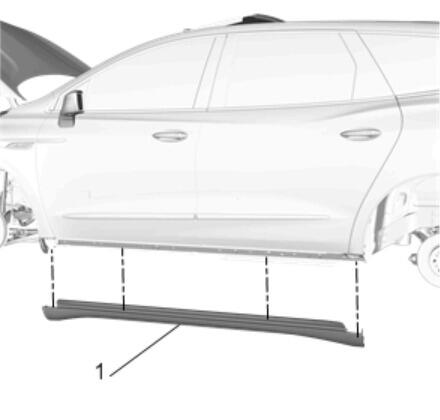

Rocker Panel Molding (1) - Remove - Rocker Panel Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

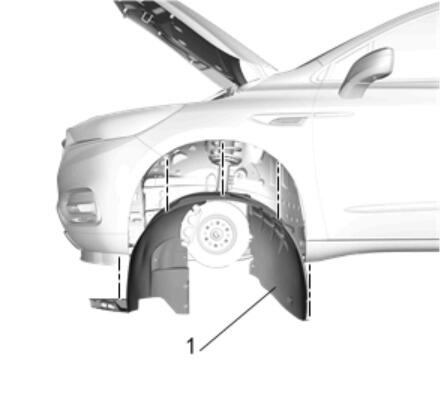

Front Wheelhouse Liner (1) - Remove - Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

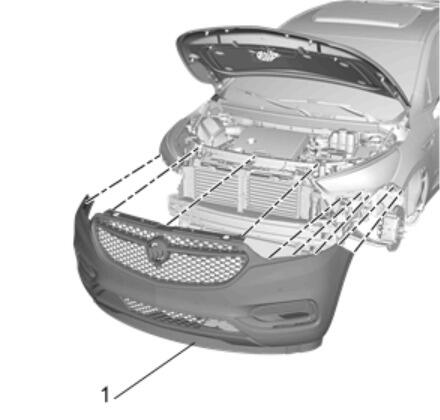

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement
Courtesy of GENERAL MOTORS COMPANY

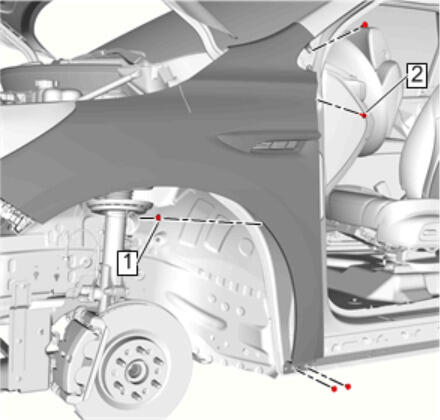

Front Fender Nut (1) - Remove
Front Fender Bolt (2) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Place protective covering over windshield at top rear bolt to prevent windshield breakage.

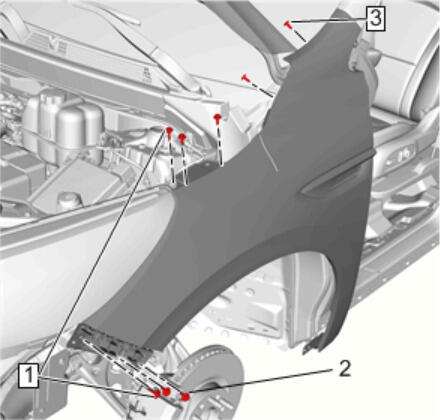

Headlamp Bolt (1) - Remove [2x]
Front Fender Bolt (2) - Remove [5x]
Front Fender Bolt (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

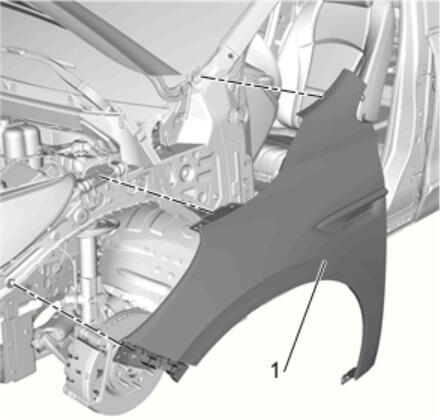

Front Fender (1) - Remove
