Rear Tire Front Air Deflector Replacement
REAR TIRE FRONT AIR DEFLECTOR REPLACEMENT

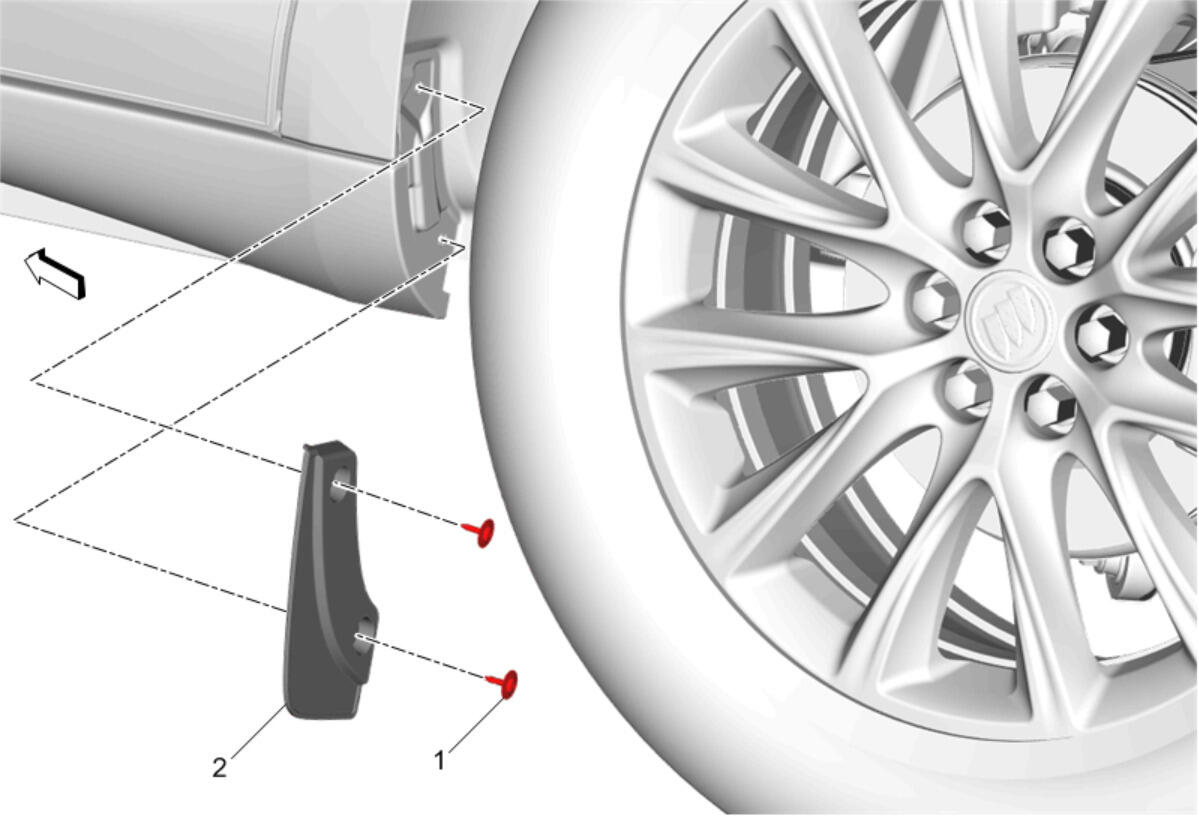

| Callout | Component Name |
|---|---|
| 1 | Rear Tire Front Air Deflector Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Tire Front Air Deflector |
