Air Inlet Grille Panel Extension Replacement (Right Side)

Courtesy of GENERAL MOTORS COMPANY

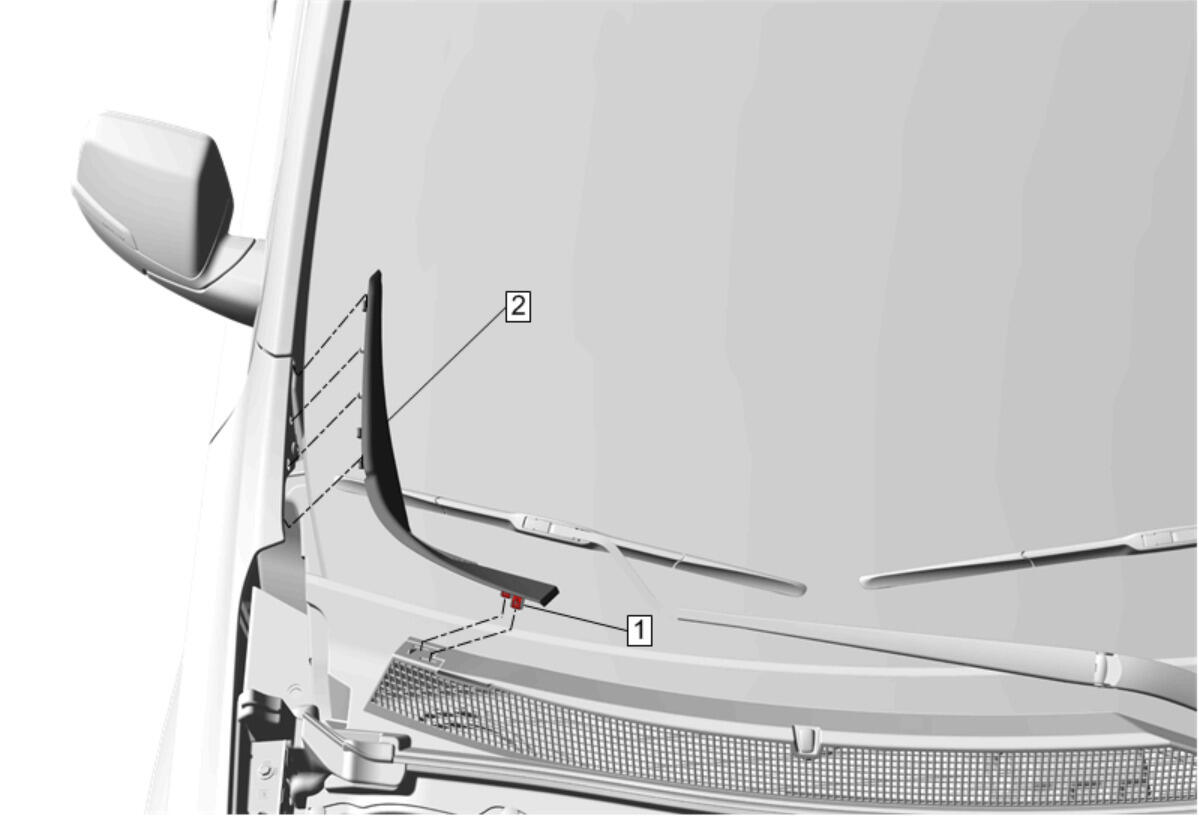

Callout	Component Name
Preliminary Procedure  Open the hood.
1	Air Inlet Grille Panel Extension Retainer [2x]
2	Air Inlet Grille Panel Extension Procedure  Grasp the air inlet grille panel side extension and disengage the retainers from the top edge of the fender and the air inlet grille panel.
