Air Inlet Grille Panel Replacement

Preliminary Procedures

1. Windshield Wiper Arm Replacement
2. Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)
3. Hood Rear Outer Air Inlet Seal Replacement

Procedure

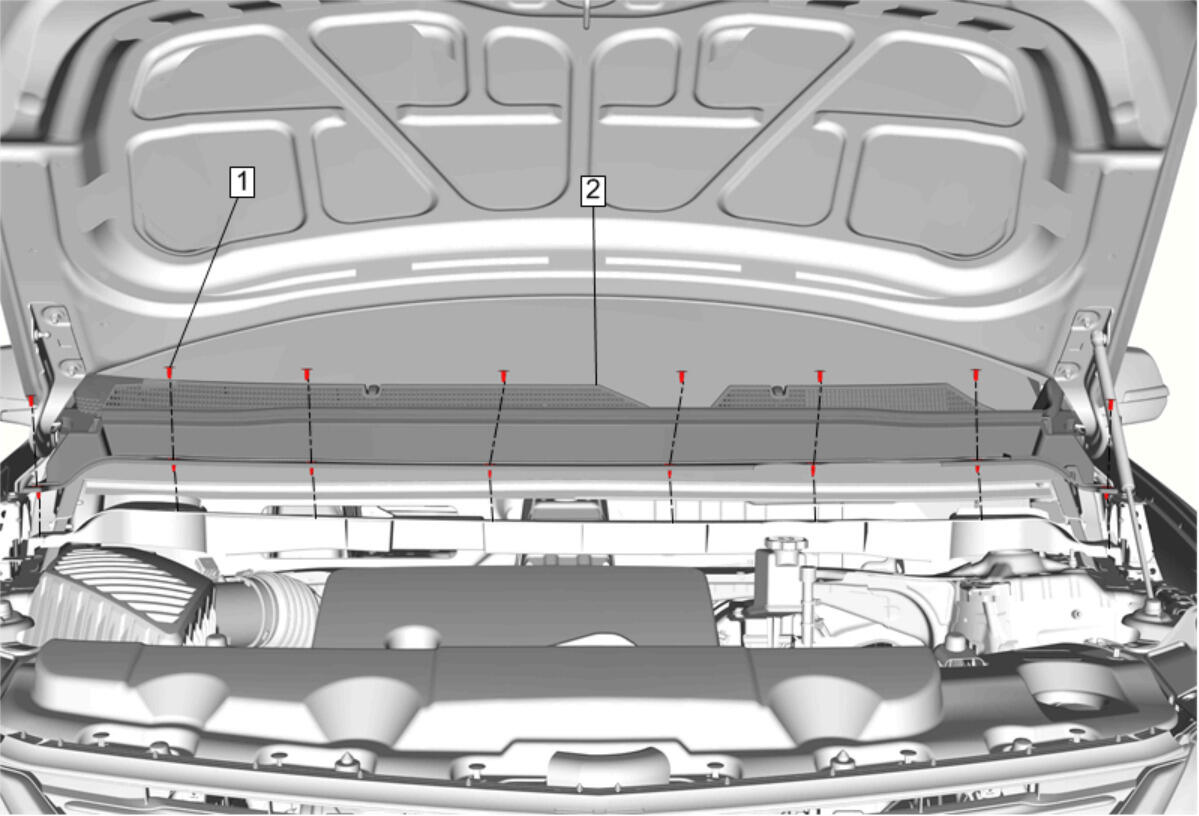

1. Using an appropriate tool, release the air inlet grille panel from the windshield lower molding.
2. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
3. Disconnect the windshield washer nozzle hose from the windshield washer hose.
4. Transfer components as necessary.
