Front Wheelhouse Liner Replacement

Courtesy of GENERAL MOTORS COMPANY

FRONT WHEELHOUSE LINER REPLACEMENT

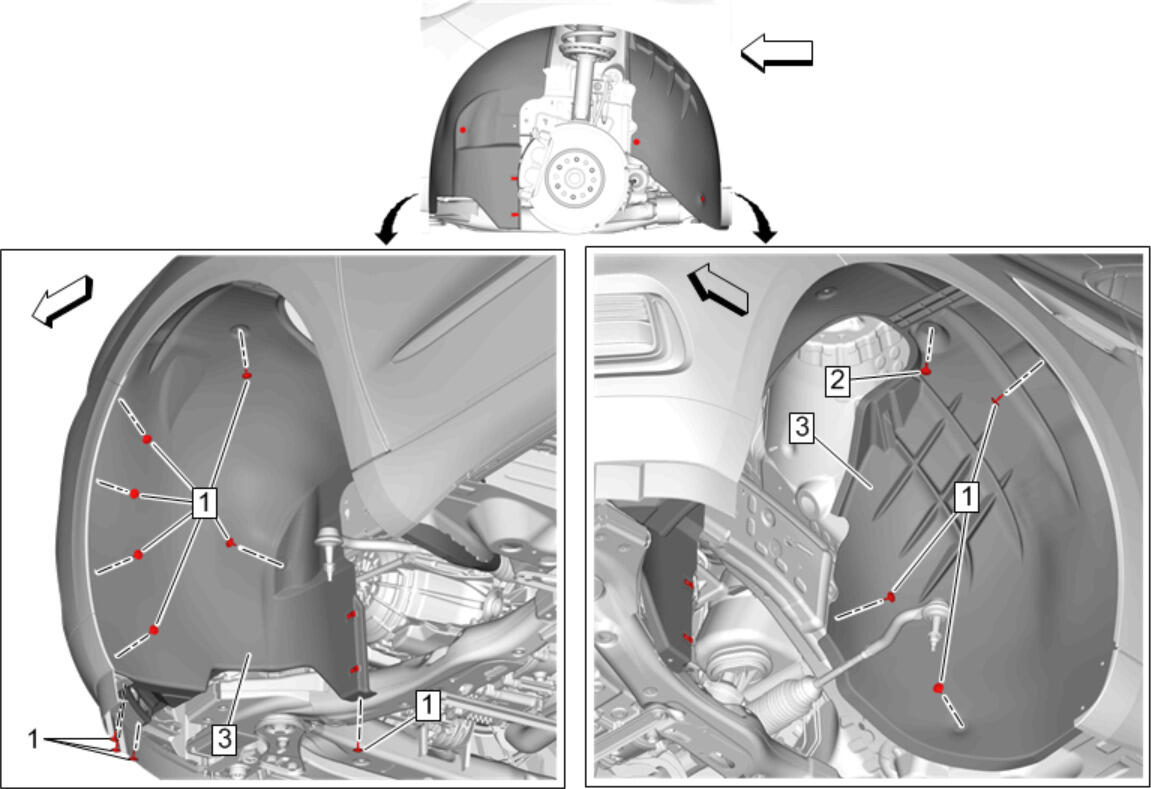

Callout	Component Name
Preliminary Procedures Front Fender Rear Air Deflector. Front Fender Rear Air Deflector Replacement Front Compartment Splash Shield.Front Compartment Splash Shield Replacement - Left Side or, Front Compartment Splash Shield Replacement - Right Side
1	Front Wheelhouse Liner Bolt[13x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Wheelhouse Liner Retainer
3	Front Wheelhouse Liner
