Rear Wheel Hub Bracket Replacement

Preliminary Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
3. Remove the rear wheel bearing and hub. Refer to Rear Wheel Bearing and Hub Replacement (GNC) Rear Wheel Bearing and Hub Replacement (GNE) .

Procedure

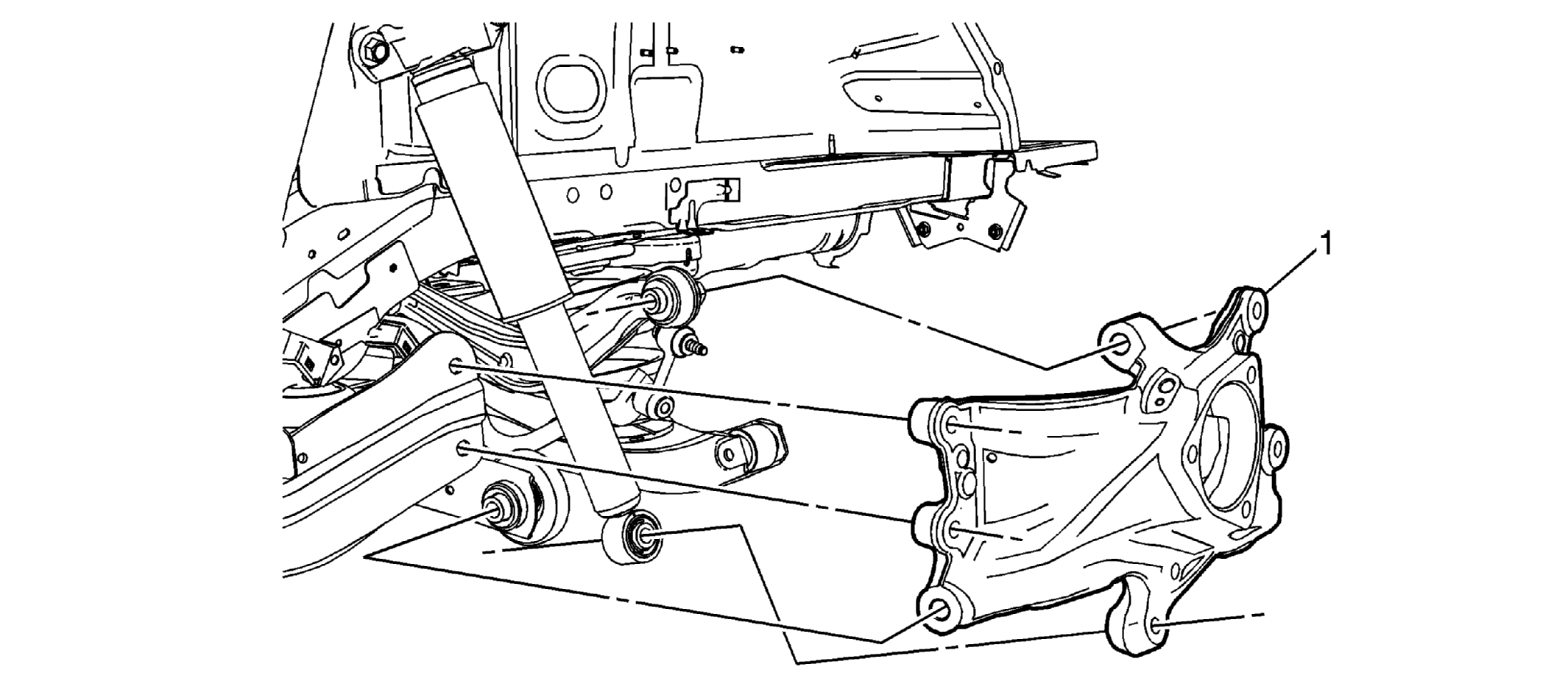

1. Support the rear lower control arm with a suitable jack stand.
2. Remove the bolt from upper control arm to the rear wheel hub bracket. Refer to Rear Axle Upper Control Arm Replacement (GNE)  or Rear Axle Upper Control Arm Replacement (GNC) .
3. Remove the bolt from the lower shock absorber bolt to the rear wheel hub bracket. Refer to Shock Absorber Replacement (GNE)  or Shock Absorber Replacement (GNC) .
4. Remove the bolt from the lower control arm to the rear wheel hub bracket. Refer to Rear Axle Lower Control Arm Replacement (GNE) .
5. Remove the bolt from the adjust link to the rear wheel hub bracket. Refer to Adjust Link Replacement (GNE)  or Adjust Link Replacement (GNC) .
6. Remove the bolts from the rear suspension control arm to the rear wheel hub bracket. Refer to Rear Suspension Control Arm Replacement .
