Rear Wheel Bearing and Hub Replacement (GNC)

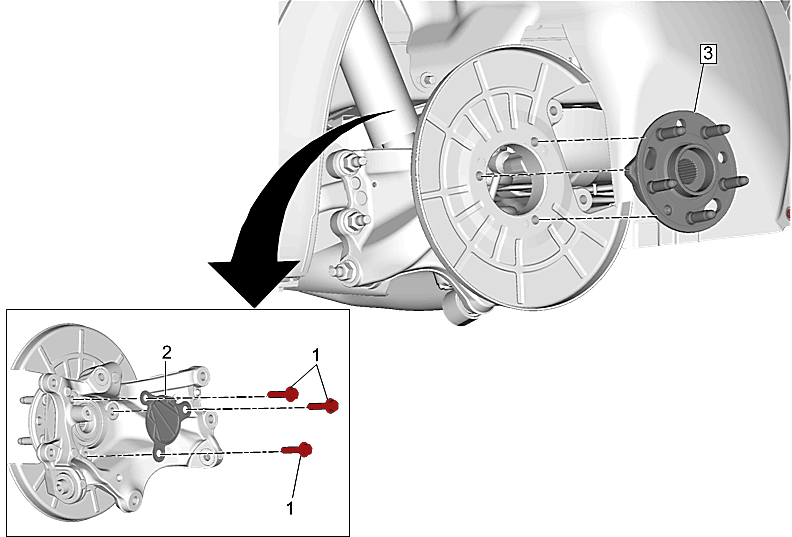

Fig 1: Rear Wheel Bearing and Hub (GNC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Tire and Wheel Removal and Installation . Rear Wheel Speed Sensor Replacement Rear Brake Rotor Replacement . Rear Axle Upper Control Arm Replacement (GNC) .
1	Rear Wheel Bearing Bolts (Qty:3) CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. CAUTION: Refer to Fastener Caution . Procedure Remove and discard the bolts. DO NOT reuse, replace with NEW only. Tighten First Pass: 90 N.m (66 lb ft) Final Pass: plus 75 degrees
2	Rear Wheel Bearing Dirt Deflector, if equipped.
3	Rear Wheel Bearing
