Adjust Link Replacement (GNC)

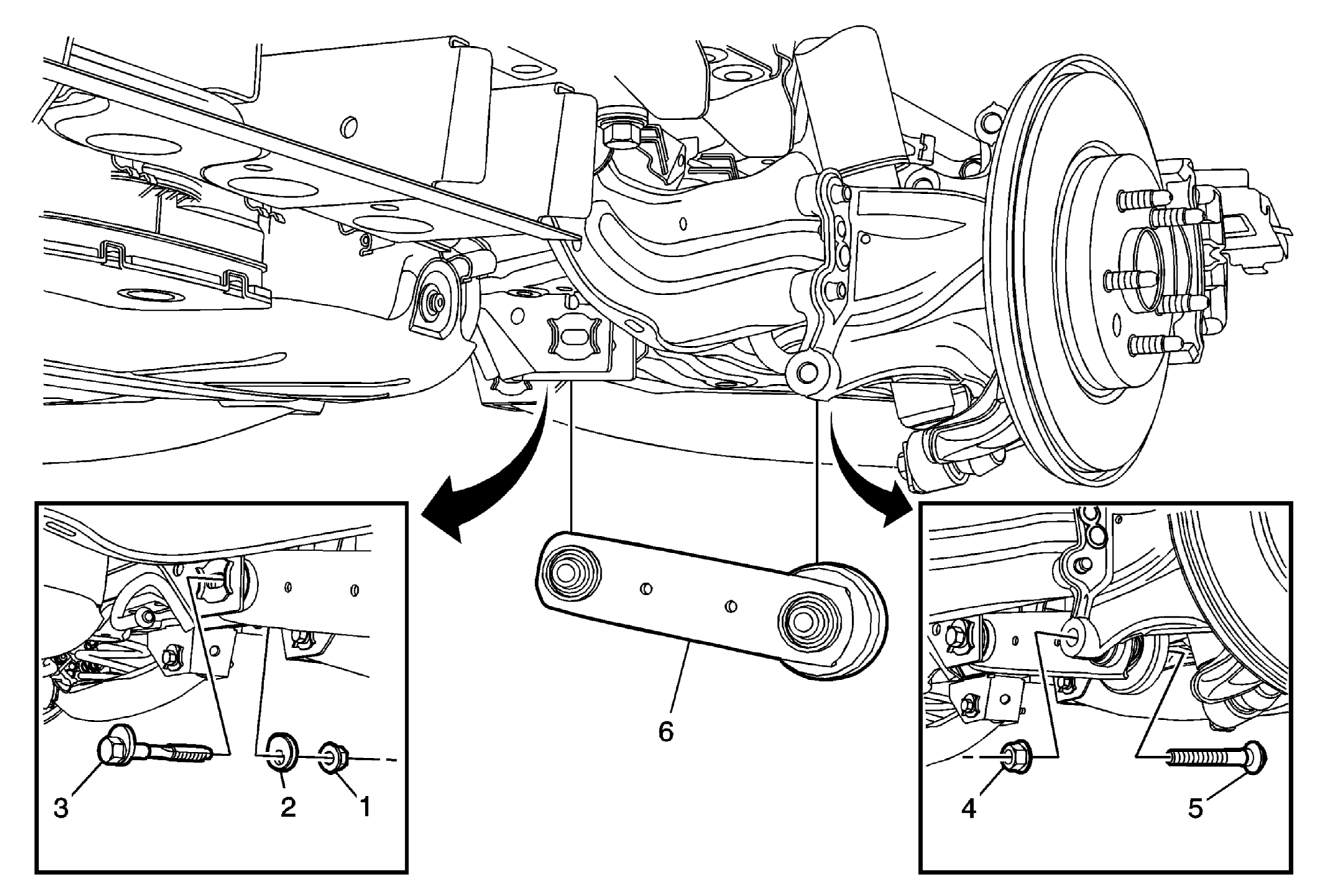

Fig 1: Adjust Link (GNC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Rear Suspension Link Inner Nut CAUTION: Refer to Fastener Caution . Procedure Support the adjust link horizontally with a jack before tightening the nut. NOTE: DO NOT torque the nut until all specifications have been checked and/or adjusted. The nut must be tightened at ride height. Tighten First Pass: 90 N.m (66 lb ft) Final Pass: plus 60 degrees Special Tools EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools .
2	Rear Suspension Washer
3	Rear Suspension Link Bolt (Inner) Procedure Remove and discard the bolt. Replace with NEW only.
4	Rear Suspension Link Nut (Outer)
5	Rear Suspension Link Bolt (Outer) Procedure Remove and discard the rear suspension link bolt. Replace with NEW only. Tighten First Pass: 115 N.m (85 lb ft) Final Pass: plus 90 degrees Special Tools EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools .
6	Adjust Link Procedure After installation, check the rear alignment. Refer to Wheel Alignment Measurement .
