Air Conditioning Evaporator and Blower Module Drain Hose Replacement

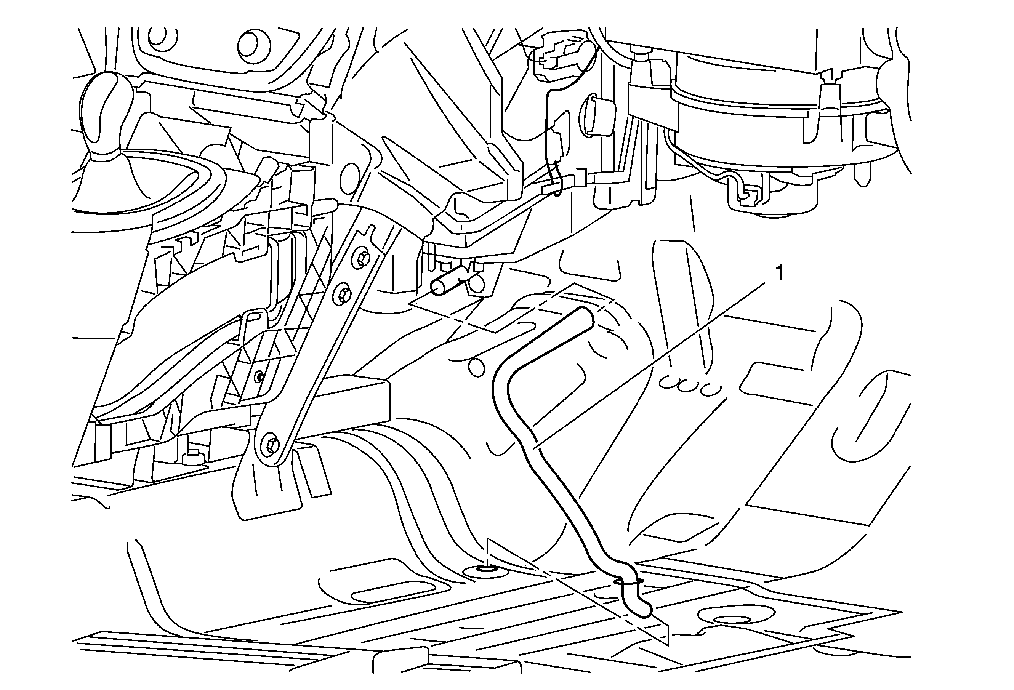

Fig 1: Air Conditioning Evaporator and Blower Module Drain Hose
GM2193999Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Compartment Replacement
  2. Front Floor Console Extension Panel Replacement
  3. Instrument Panel Lower Extension Side Trim Panel Replacement
  4. Floor Air Outlet Duct Replacement - Right Side
CAUTION:

Refer to HVAC Module Drain Tube Caution .
1 Air Conditioning Evaporator and Blower Module Drain Hose

Procedure

  1. Loosen the carpet in the area of the front floor console.
  2. Release and pull off the drain hose from the HVAC module assembly, and remove the drain fitting grommet from the front floor panel.
