Front Floor Console Extension Panel Replacement

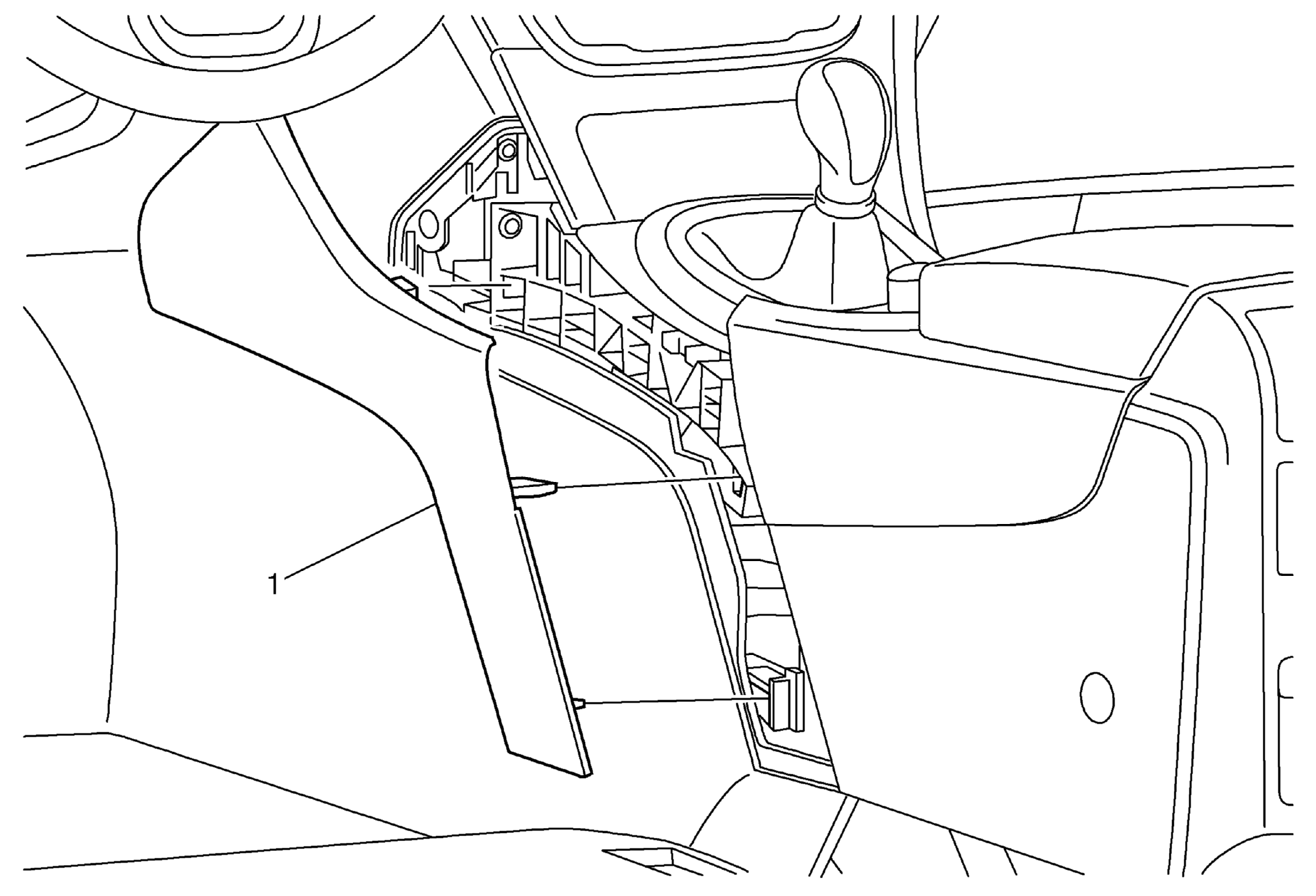

Fig 1: Front Floor Console Extension Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Extension Panel Procedure  Grasp the extension panel and pull outward disengaging the retainer clips securing the panel to the front floor console.
