Instrument Panel Compartment Replacement

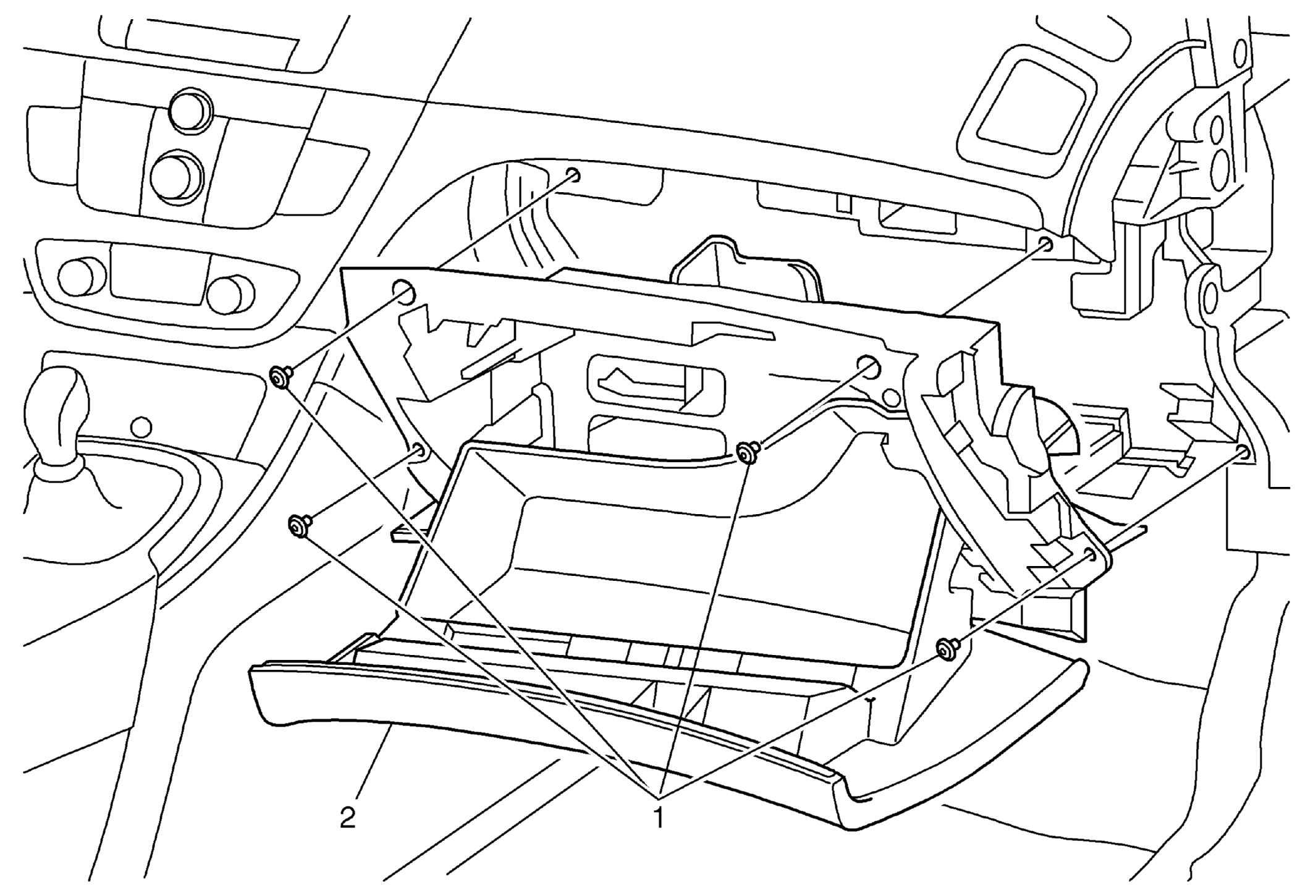

Fig 1: Instrument Panel Compartment And Fasteners

GM2020203

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the right outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side .
Remove the instrument panel lower extension compartment panel. Refer to Instrument Panel Lower Extension Compartment Panel Replacement .

1

Instrument Panel Compartment Bolt (Qty:4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Instrument Panel Compartment Assembly

Procedure

Disconnect electrical connections, if applicable.
Transfer components as necessary.
