Floor Air Outlet Duct Replacement - Right Side

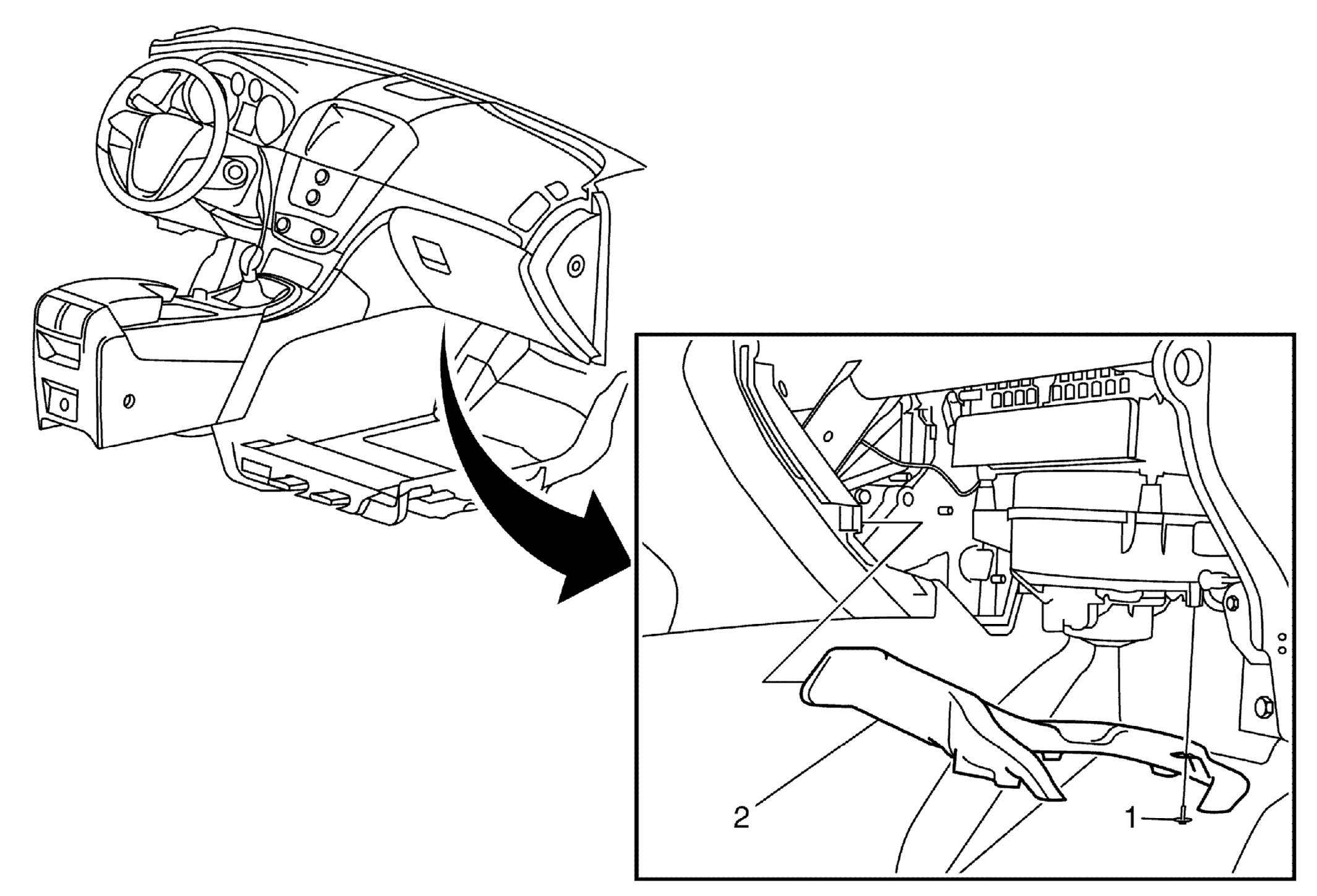

Fig 1: Floor Air Outlet Duct - Right Side
GM2020213Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Floor Air Outlet Duct Fastener
2 Floor Air Outlet Duct
