Instrument Panel Lower Extension Side Trim Panel Replacement

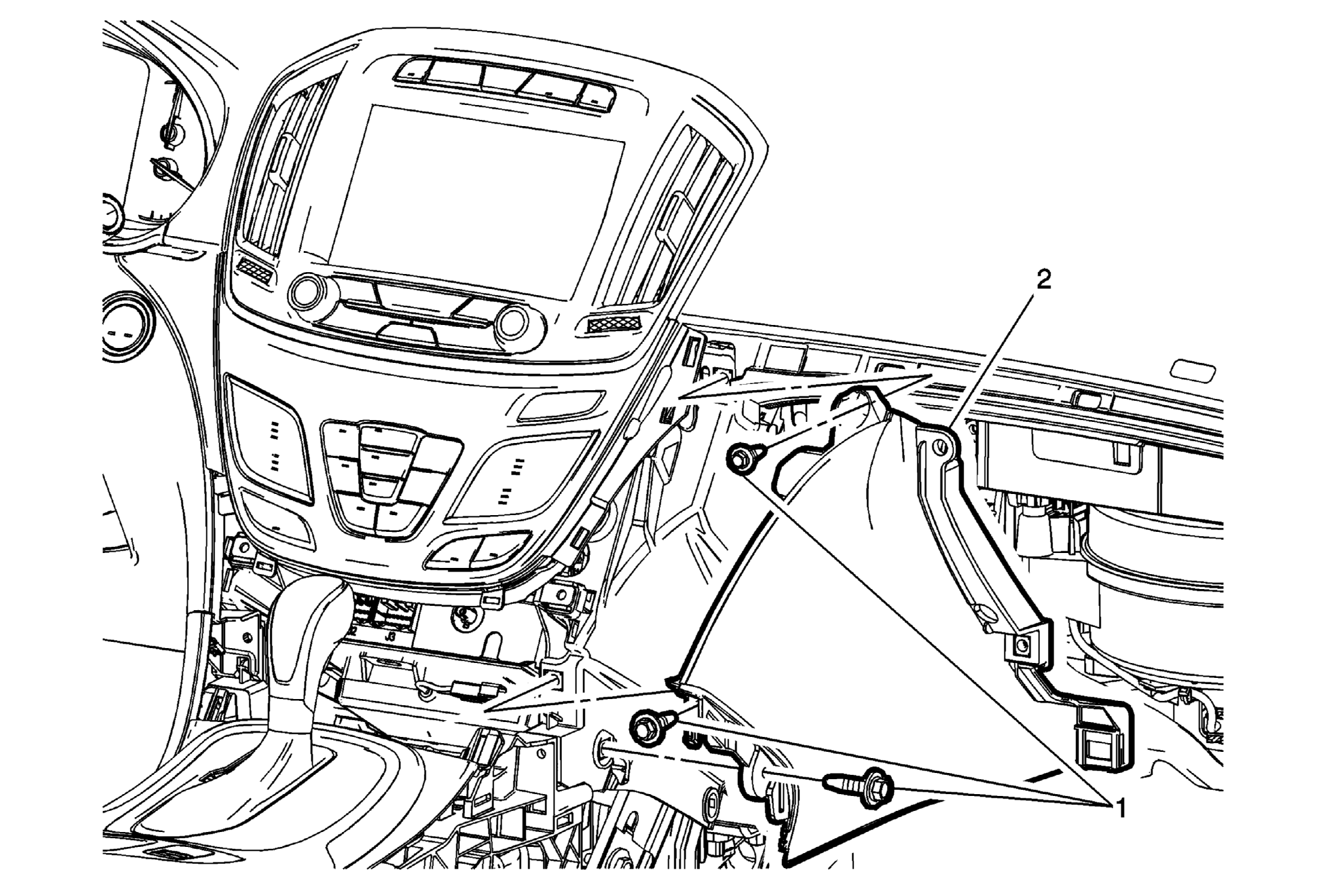

Fig 1: Instrument Panel Lower Extension Side Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement Remove the passenger side instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement (Passenger Side) .
1	Instrument Panel Lower Extension Side Trim Panel Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Extension Side Trim Panel

Callout

Component Name

Preliminary Procedures

Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement
Remove the passenger side instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement (Passenger Side) .

Instrument Panel Lower Extension Side Trim Panel Fastener (Qty:3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Extension Side Trim Panel
