Duct Air Temperature Sensor Replacement - Upper Right Side

Preliminary Procedures

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
2. Remove the instrument panel lower extension side trim panel. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement .
3. Remove the temperature valve actuator right side. Refer to Temperature Valve Actuator Replacement - Right Side .
4. Remove the heater and blower and air conditioning control module. Refer to Heater and Blower and Air Conditioning Control Module Replacement .
5. Remove the recirculation actuator. Refer to Inside Air Valve Actuator Replacement .

Procedure

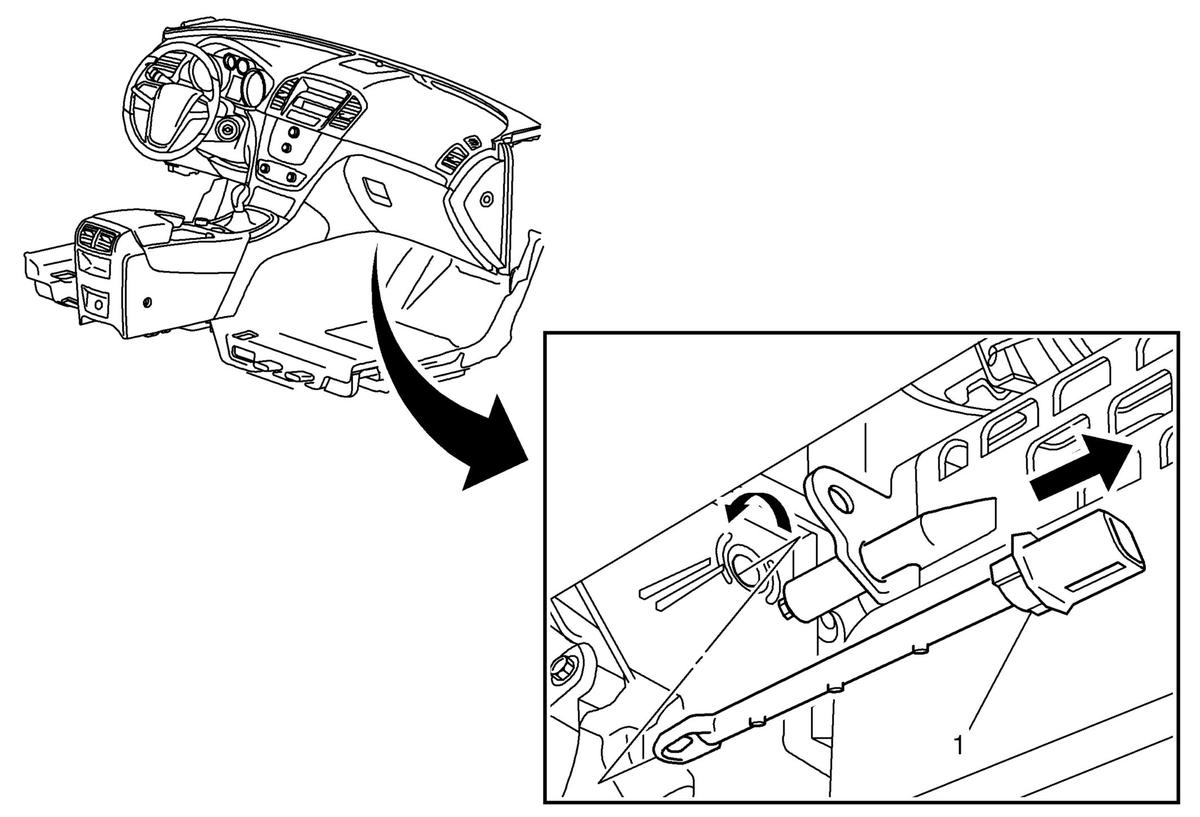

1. Disconnect the air temperature sensor electrical connector.
2. Twist and pull the upper air temperature sensor from the HVAC module assembly.
